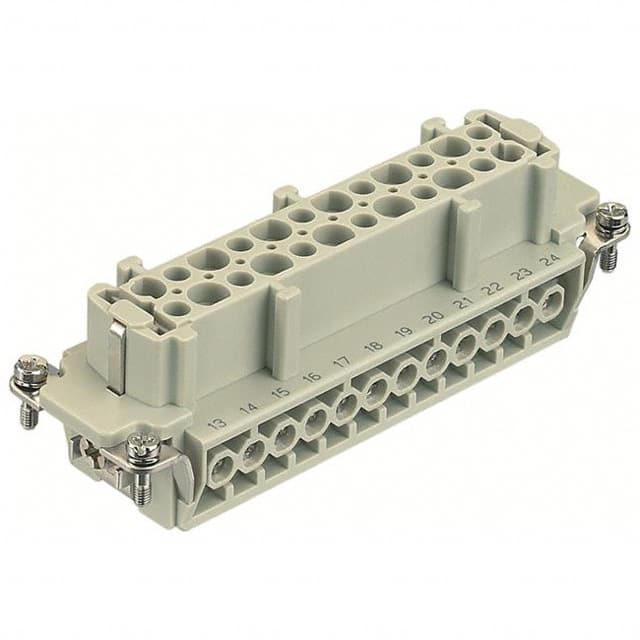

09330242701 HARTING 09330242701 is a Han E series female insert with 24+PE contacts and screw termination. Rated for 16A and 500V with a wide temperature range of -40°C to 125°C.
Mfr Part #:

09330242701

Available from 1 distributors
Mfr Name: Harting
Harting
HARTING 09330242701 is a Han E series female insert with 24+PE contacts and screw termination. Rated for 16A and 500V with a wide temperature range of -40°C to 125°C.
✓ Total Stock: 1 pcs

09330242701 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09330242701 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Resistance
Current Rating
Current Rating (Amps)
Failure Rate
Gender
Industrial Grade
Insulation Resistance
Mating Cycles
Number of Contacts
Number of Positions
Operating Temperature
Operating Temperature Range
Rated Voltage
SVHC Present
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

09330242701 Description

Short technical summary and product information.

The HARTING 09330242701 (also known as 09 33 024 2701) is a Han E series female insert designed for heavy duty connector applications. It features 24 signal contacts plus a protective earth (PE) contact, all with screw termination for reliable wire connections. The insert accepts conductor cross-sections from 0.75 to 2.5 mm² (AWG 18 to 14) and is rated for 16A continuous current at 500V rated voltage (600V UL/CSA).



Electrical performance includes a rated impulse voltage of 6 kV, pollution degree 3, contact resistance ≤1 mΩ, and insulation resistance >10¹⁰ Ω. The operating temperature range spans -40°C to 125°C, with a minimum of 500 mating cycles. The insert is made of polycarbonate (PC) in pebble grey (RAL 7032), with silver-plated copper alloy contacts.



Compliance includes RoHS with exemption 6(c) for lead content, REACH SVHC (lead), UL 94 V-0 flammability, and China RoHS 50. The insert has MSL 1 (unlimited floor life) and supports wire protection. It is intended for use with compatible Han E hoods and housings in industrial automation, machinery, and power distribution systems.

09330242701 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han E
Canonical Name: Han E 24 Pos. Female Insert with Screw Termination
Subcategory: Female Insert with Screw Termination

09330242701 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH SVHC substances: Lead

09330242701 Features

  • 24 position female insert with PE contact.
  • Screw termination for 0.75-2.5 mm² conductors.
  • Rated for 16A continuous current.
  • 500V rated voltage, 600V UL rated.
  • Operating temperature range -40°C to 125°C.

09330242701 Applications

  • Used in heavy duty industrial connectors.
  • Suitable for machine building and automation.
  • Ideal for power distribution applications.
  • Compatible with Han E hoods and housings.

09330242701 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this insert have?

24 signal positions plus one protective earth (PE) contact.

What is the current rating?

16 A.

What is the voltage rating?

Rated voltage 500 V, rated voltage acc. to UL/CSA 600 V.

What wire gauge does this insert accept?

Conductor cross-section 0.75 to 2.5 mm² (AWG 18 to 14).

What is the operating temperature range?

-40°C to 125°C.

What is the insulation material?

Polycarbonate (PC) with UL 94 V-0 flammability rating.

Is this insert RoHS compliant?

Yes, RoHS compliant with exemption 6(c) for lead in copper alloy.
