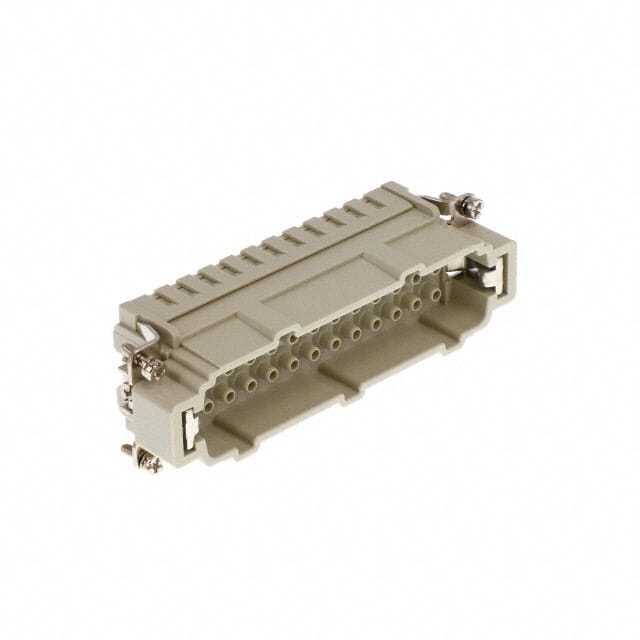

09330242602 Harting Han E 24 Pos. M Insert Crimp, 24+Ground contacts, 16A rated current, 500V (IEC) / 600V (UL/CSA) rated voltage, crimp termination.
Mfr Part #:

09330242602

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han E 24 Pos. M Insert Crimp, 24+Ground contacts, 16A rated current, 500V (IEC) / 600V (UL/CSA) rated voltage, crimp termination.
✓ Total Stock: 220 pcs

09330242602 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
220 pcs
On Request
220 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09330242602 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Country of Origin
Current Rating (Amps)
Gender
Insulation Resistance
Mating Cycles
Number of Positions
Operating Temperature
SVHC Present
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

09330242602 Description

Short technical summary and product information.

The Harting 09330242602 is a Han E series male insert with 24+Ground contacts, designed for heavy-duty connector applications. It features crimp termination and accepts conductor cross-sections from 0.14 to 4 mm² (AWG 26 to 12). The insert is rated for 16 A current and 500 V (IEC) or 600 V (UL/CSA) voltage, with a rated impulse voltage of 6 kV and pollution degree 3.



Constructed from polycarbonate (PC) with a pebble grey color (RAL 7032), the insert offers a flammability rating of V-0 per UL 94. It supports operating temperatures from -40°C to 125°C and is rated for at least 500 mating cycles. The insert is sold without contacts; crimp contacts must be ordered separately.



This component is suitable for industrial machinery, control cabinets, and railway applications, complying with EN 45545-2 fire protection standards. It is RoHS compliant and REACH SVHC-free, though it contains lead and nickel as per California Proposition 65.

09330242602 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han E
Canonical Name: Harting Han E 24 Pos. M Insert Crimp
Subcategory: Heavy Duty Connector Insert

09330242602 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (unlimited)
REACH Status: Not contained (SVHC, Annex XIV, Annex XVII)

09330242602 Features

  • 24+Ground contacts for heavy-duty connections.
  • Rated 16A and 500V (IEC) / 600V (UL/CSA).
  • Crimp termination for secure wire attachment.
  • Polycarbonate insert with V-0 flammability rating.
  • Operates from -40°C to 125°C temperature range.

09330242602 Applications

  • Used in industrial machinery and control cabinets.
  • Suitable for railway rolling stock applications.
  • Ideal for power distribution in heavy equipment.
  • Applied in automation and process control systems.

09330242602 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Harting 09330242602 insert have?

The insert has 24+Ground positions (24 signal contacts plus one ground contact).

What is the current rating of this insert?

The rated current is 16 A.

What is the voltage rating of the Harting 09330242602?

The rated voltage is 500 V per IEC and 600 V per UL/CSA standards.

What termination method does this insert use?

It uses crimp termination.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

What material is the insert made of?

The insert is made of polycarbonate (PC) with a pebble grey color (RAL 7032).

Is this insert RoHS compliant?

Yes, it is RoHS compliant.
