09330162701 Harting 09330162701 is a Han E 16-position female insert with screw termination, rated for 16A and 500V. It includes a PE contact and supports 0.75-2.5 mm² conductors.
Mfr Part #:

09330162701

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09330162701 is a Han E 16-position female insert with screw termination, rated for 16A and 500V. It includes a PE contact and supports 0.75-2.5 mm² conductors.
✓ Total Stock: 6 pcs

09330162701 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09330162701 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Material
Contact Plating
Contact Resistance
Current Rating
Current Rating (Amps)
Failure Rate
Gender
Industrial Grade
Insulation Resistance
Lead Style
Mating Cycles
Number of Contacts
Number of Positions
Operating Temperature
Operating Temperature Range
Rated Voltage
SVHC Present
Tape & Reel
Termination Method
Termination Style
Voltage Rating
View Similar Products (0)

09330162701 Description

Short technical summary and product information.

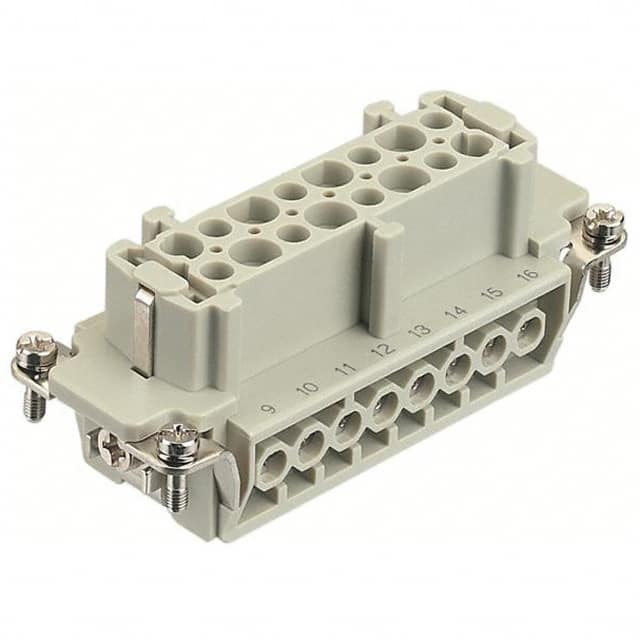

The Harting 09330162701 is a Han E series 16-position female insert designed for heavy-duty connector applications. It features a polycarbonate (PC) insert with UL 94 V-0 flammability rating and silver-plated copper alloy contacts. The insert supports screw termination for conductor cross-sections from 0.75 to 2.5 mm² (AWG 18-14) with a stripping length of 7.5 mm and tightening torque of 0.5 Nm.



Electrical ratings include a rated current of 16A, rated voltage of 500V (IEC) and 600V (UL/CSA), rated impulse voltage of 6kV, and pollution degree 3. Contact resistance is ≤1 mΩ, and insulation resistance exceeds 10¹⁰ Ω. The operating temperature range is -40°C to +125°C, with a minimum of 500 mating cycles.



The insert includes a protective earth (PE) contact and is suitable for industrial environments. It is RoHS compliant with exemption (lead in copper alloy) and meets ELV and China RoHS requirements. The insert is sold individually and is ideal for use in control cabinets, machinery, and power distribution systems.

09330162701 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han E
Canonical Name: Han E 16 Pos. Female Insert Screw
Subcategory: Inserts

09330162701 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH SVHC substances: Lead
Lead Free: No

09330162701 Features

  • 16-position female insert with PE contact.
  • Rated for 16A current and 500V/600V voltage.
  • Screw termination for 0.75-2.5 mm² conductors.
  • Silver-plated copper alloy contacts.
  • UL 94 V-0 polycarbonate insert.

09330162701 Applications

  • Used in industrial machinery and control cabinets.
  • Suitable for heavy-duty power and signal connections.
  • Ideal for applications requiring high mating cycles.

09330162701 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Harting 09330162701 insert have?

It has 16 signal contacts plus one PE (ground) contact, for a total of 17 positions.

What is the current rating of the Harting 09330162701?

The rated current is 16A.

What is the voltage rating of the Harting 09330162701?

The rated voltage is 500V (IEC) and 600V (UL/CSA).

What is the termination method for this insert?

It uses screw termination with a tightening torque of 0.5 Nm.

What is the operating temperature range?

The operating temperature range is -40°C to +125°C.

What materials are the contacts and insert made of?

Contacts are made of silver-plated copper alloy; the insert is polycarbonate (PC) with UL 94 V-0 rating.

Is the Harting 09330162701 RoHS compliant?

Yes, it is RoHS compliant with exemption 6(c) for lead in copper alloy (up to 4% lead by weight).
