| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| China RoHS | |
| Country of Origin | |
| ELV | |
| ETIM | |
| European Customs Tariff Number | |
| Failure Rate | |
| For Use With | |
| GTIN | |
| Material | |
| Net Weight | |
| Operating Temperature Range | |
| Pack Contents | |
| Packaging Size | |
| Prop 65 | |
| SVHC Present | |
| Shock Specification | |
| Tape & Reel | |
| Tightening Torque | |
| Vibration Specification | |
| eCl@ss |

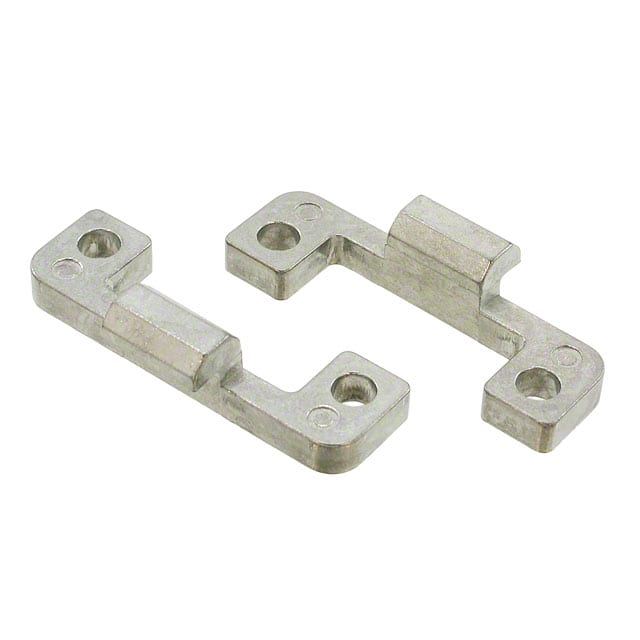

This Harting Han-Snap® panel mount frame (part number 09330009984) is a heavy duty connector accessory designed for use with Han® 6B, 10B, 16B and 24B inserts. The frame is constructed from zinc die-cast material for robust mechanical support and reliability in industrial environments.
It operates over a temperature range of -40 to +125 °C and requires a tightening torque of 0.8 N·m. The frame complies with vibration (IEC 60068-2-6) and shock (IEC 60068-2-27) specifications, making it suitable for demanding applications such as factory automation, robotics, and transportation.
The pack contains two metallic panel mounting parts, sufficient for one insert or terminal block connector. The product is RoHS, ELV, China RoHS, and REACH compliant, and ships in a package of 10 pieces.
-40 to +125 °C
Zinc die-cast
Han® 6B, 10B, 16B and 24B Inserts
0.8 N·m
The pack contains 10 pieces, with 2 metallic panel mounting parts sufficient for one insert or terminal block connector.
IEC 60068-2-6 (vibration sinusoidal) and IEC 60068-2-27 (shock).
