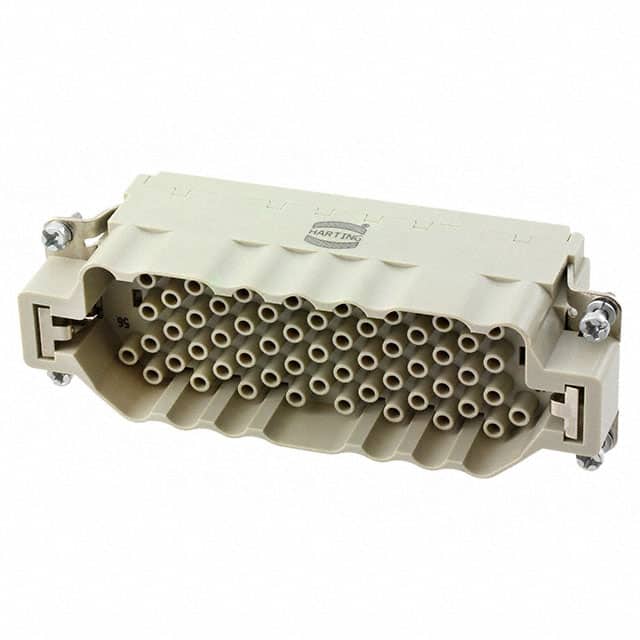

09322643001 Harting Han 64EEE HMC-M-Crimp insert with 64+Ground positions, rated 16A and 500V. Crimp termination, male gender, size 24B.
Mfr Part #:

09322643001

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han 64EEE HMC-M-Crimp insert with 64+Ground positions, rated 16A and 500V. Crimp termination, male gender, size 24B.
✓ Total Stock: 5 pcs

09322643001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09322643001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Country of Origin
Current Rating
Current Rating (Amps)
Gender
Industrial Grade
Insulation Resistance
Mating Cycles
Number of Positions
Operating Temperature
SVHC Present
Specifications
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

09322643001 Description

Short technical summary and product information.

The Harting 09322643001 is a Han 64EEE HMC-M-Crimp insert designed for heavy-duty connector applications. It features 64+Ground positions with a male gender and size 24B housing. The insert is rated for 16A current and 500V voltage, with a rated impulse voltage of 6 kV and pollution degree 3.



This insert uses crimp termination and accepts conductor cross-sections from 0.14 to 4 mm² (AWG 26 to AWG 12). It includes a PE contact and is rated for at least 10,000 mating cycles. The operating temperature range is -40°C to 125°C.



The insert is made of polycarbonate (PC) with RAL 7032 pebble grey color and meets UL 94 V-0 flammability class. It is RoHS, REACH, ELV, and China RoHS compliant, and meets EN 45545-2 fire protection requirements for railway vehicles.

09322643001 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han EEE HMC
Canonical Name: Han 64EEE HMC-M-Crimp Insert without Contacts
Subcategory: Heavy Duty Connector Inserts

09322643001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH compliant (Annex XVII/XIV/SVHC not contained)

09322643001 Features

  • 64+Ground positions with PE contact.
  • Rated 16A current and 500V voltage.
  • Crimp termination for 0.14-4 mm² wire.
  • Polycarbonate insert with UL 94 V-0 rating.
  • Rated for 10,000 mating cycles.

09322643001 Applications

  • Heavy-duty industrial connector systems.
  • Railway vehicle electrical connections.
  • High-density signal and power applications.
  • Harsh environment interconnect solutions.

09322643001 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the Harting 09322643001 insert?

The rated current is 16 A.

What is the voltage rating of this insert?

The rated voltage is 500 V with a rated impulse voltage of 6 kV.

How many positions does the 09322643001 insert have?

It has 64+Ground positions (64 signal contacts plus one PE contact).

What termination method does this insert use?

It uses crimp termination.

What is the operating temperature range?

The limiting temperature range is -40°C to +125°C.

Is this insert RoHS compliant?

Yes, it is RoHS compliant.

What wire sizes does the crimp termination accept?

It accepts conductor cross-sections from 0.14 to 4 mm² (AWG 26 to AWG 12).
