| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Insulation Resistance | |
| Insulator Color | |
| Insulator Material | |
| Number of Contacts | |
| SVHC Present | |
| Termination Method | |
| Torque | |
| Type |

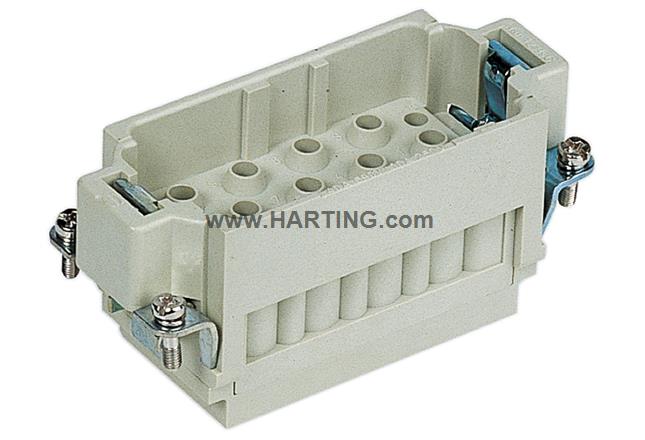

This Harting Han HsC 12 Pos. Male Insert, part number 0932-012-3001, is designed for robust industrial applications. It offers a total of 14 contacts, comprising 12 power contacts and 2 signal contacts.
The insert supports a wide conductor cross-section range, from 1.5 to 6 mm² for power and 0.14 to 2.5 mm² for signal applications. It is rated for a nominal power current of 40A at 690V and a nominal signal current of 10A at 250V.
Constructed with a durable Polycarbonate (PC) insulator in RAL 7032 (Pebble Grey), this male insert meets UL 94 V-0 flammability standards. It is designed for crimp termination and operates within a temperature range of -40°C to +125°C, with a minimum of 500 connection cycles.
Compliance includes IEC 60664-1, IEC 61984, UL 1977, and CSA-C22.2 No. 182.3. It also meets EN 45545-2 requirements for fire protection in railway vehicles.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current for power contacts is 40 A.
The rated voltage for power contacts is 690 V.
The rated current for signal contacts is 10 A.
The rated voltage for signal contacts is 250 V.
The operating temperature range is -40 °C to +125 °C.
The insulator material is Polycarbonate (PC).
The conductor cross-section for power connections is 1.5 to 6 mm².
