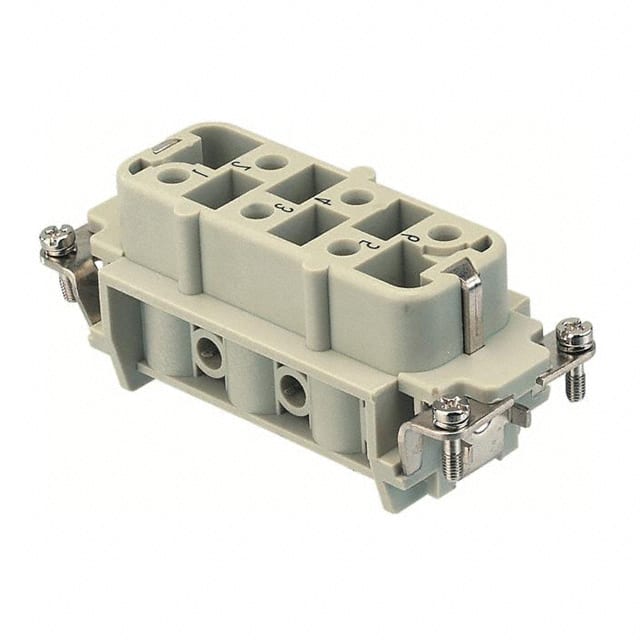

09310062701 Harting 09310062701 is a Han 6HsB-F-S female insert with 6+Ground contacts, screw termination, rated 35A and 600V. It is designed for heavy duty connector applications.
Mfr Part #:

09310062701

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09310062701 is a Han 6HsB-F-S female insert with 6+Ground contacts, screw termination, rated 35A and 600V. It is designed for heavy duty connector applications.
✓ Total Stock: 43 pcs

09310062701 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
43 pcs
On Request
43 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09310062701 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Resistance
Current Rating
Current Rating (Amps)
Failure Rate
Gender
Insulation Resistance
Mating Cycles
Number of Positions
Operating Temperature
SVHC Present
Specifications
Tape & Reel
Termination Method
Termination Style
Voltage Rating
View Similar Products (0)

09310062701 Description

Short technical summary and product information.

The Harting 09310062701 (09 31 006 2701) is a female insert from the Han HsB series, designed for heavy duty connector applications. It features 6+Ground contacts with screw termination, providing reliable electrical connections in industrial environments.



Electrical ratings include 35A current and 600V voltage (UL/CSA), with conductor-conductor rated voltage of 690V and conductor-earth rated voltage of 400V. The insert has a contact resistance of ≤1 mΩ and insulation resistance >10¹⁰ Ω. It accepts conductor cross-sections from 1.5 to 6 mm² with a stripping length of 11.5 mm.



The insert is made with a polycarbonate (PC) insert in pebble grey (RAL 7032) and silver plated copper alloy contacts. It operates in temperatures from -40°C to +125°C and is rated for ≥500 mating cycles. It complies with IEC 60664-1, IEC 61984, UL 1977, CSA C22.2 No. 182.3, and UL 2237 standards, making it suitable for heavy duty industrial, railway, and automation applications.

09310062701 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han HsB
Canonical Name: Han 6HsB-F-S Insert Female 6+Ground Screw Termination
Subcategory: Heavy Duty Connector Inserts

09310062701 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: SVHC: Lead

09310062701 Features

  • 6+Ground contacts with screw termination.
  • Rated 35A current and 600V voltage.
  • Operating temperature range -40°C to +125°C.
  • ≥500 mating cycles for durability.
  • Silver plated copper alloy contacts.

09310062701 Applications

  • Used in heavy duty connector systems.
  • Suitable for industrial power distribution.
  • Ideal for railway rolling stock applications.
  • Common in automation and control cabinets.

09310062701 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the insert have?

6+Ground (6 contacts plus ground).

What is the current rating?

35A.

What is the voltage rating?

600V (UL/CSA), with conductor-conductor 690V and conductor-earth 400V.

What is the termination method?

Screw termination.

What is the operating temperature range?

-40°C to +125°C.

What is the contact resistance?

≤1 mΩ.

What compliance standards does it meet?

IEC 60664-1, IEC 61984, UL 1977, CSA C22.2 No. 182.3, UL 2237.
