0930701501

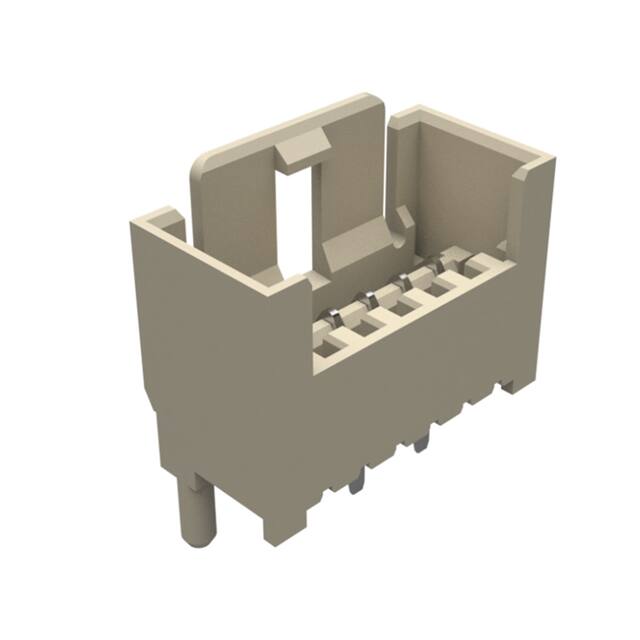

The Molex 0930701501 is a RAST 2.5 series shrouded header connector designed for board-to-cable/wire interconnections. It features 6 positions arranged in a single row with a 2.50mm pitch, making it suitable for compact designs requiring reliable, polarized connections. The header is fully shrouded with a 4-wall design and includes a locking ramp for secure mating.

Electrical specifications include a current rating of 6A and a voltage rating of 32V. The operating temperature range is -20°C to 120°C. The contacts are made of brass with a tin finish (3.00µm thickness). The housing is constructed from glass-filled nylon 6/6 (PA66) with a UL94 V-0 flammability rating.

Mechanically, the header is through-hole mounted with solder termination. The insulation height is 15.29mm, and the contact length is 3.30mm. A board guide feature aids in alignment during assembly. The natural color housing provides good visibility for inspection.

This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is commonly used in appliance, automotive, and industrial applications requiring a robust, polarized wire-to-board connection.
