| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| Customs Tariff Number | |
| DNV GL | |
| ELV | |
| ETIM | |
| Failure Rate | |
| Fire Protection Rating | |
| GTIN | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Mating Cycles | |
| Net Weight | |
| Operating Temperature | |
| Packaging Quantity | |
| Prop 65 | |
| SVHC Present | |
| Tape & Reel | |
| UL Rating | |
| Version | |
| Width | |
| eCl@ss |

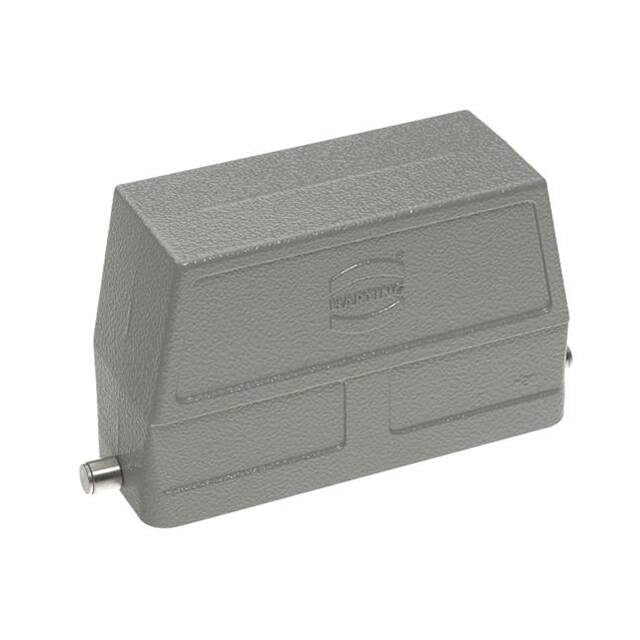

This Harting Han® HMC hood (part number 09 30 224 0803) is a size 24B, high construction hood designed for heavy-duty connector applications requiring high mating cycles. It features a single locking lever and is supplied without cable entry. The housing is made of aluminium die-cast with a powder-coated finish in RAL 7037 (dust grey).
The hood provides IP65 protection against dust and water jets, and is rated for operating temperatures from -40°C to +125°C. It is designed for use with other HMC components and is rated for at least 10,000 mating cycles.
Compliance includes RoHS, REACH, ELV, China RoHS, and California Proposition 65 (nickel). It also meets fire protection standards for railway vehicles per EN 45545-2 and holds UL type ratings 4, 4X, and 12.
IP65 - Dust Tight, Water Resistant per IEC 60529.
-40°C to +125°C.
At least 10,000 mating cycles with other HMC components.
Aluminium die-cast with powder-coated finish, color RAL 7037.
Single locking lever with locking clip on base bottom.
Yes, RoHS compliant.
Germany.
