| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Color (Hood/Housing) | |
| Connector Type | |
| Country of Origin | |
| Degree of protection acc. to IEC 60529 | |
| ELV | |
| Fire Protection on Railway Vehicles | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Limiting Temperature | |
| Lock Location | |
| Locking Type | |
| Mating Cycles | |
| Net Weight | |
| Operating Temperature | |
| Packaging Size | |
| Prop 65 | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Type rating acc. to UL 50 / UL 50E | |
| Width |

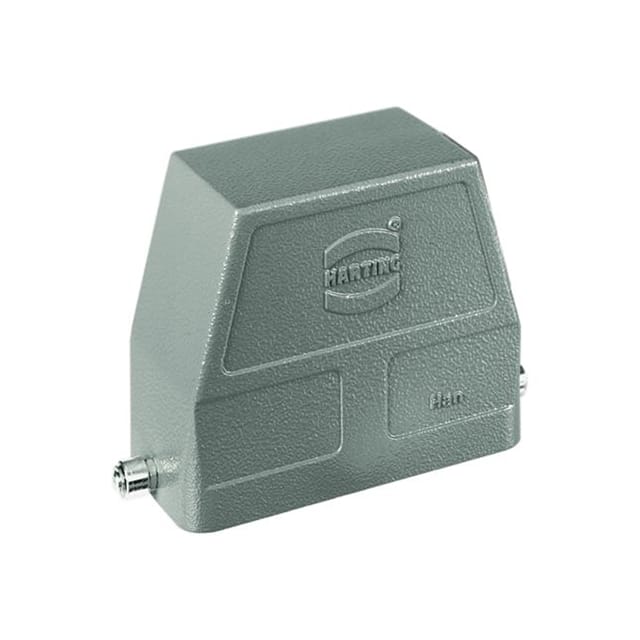

The Harting Han 16B-HMC-g-R (part number 09302160803) is a heavy-duty connector hood designed for high mating cycle applications. It is part of the Han HMC series and has a size 16B with a single locking lever located on the base bottom. The housing is made of aluminum die-cast with a gray powder-coated finish (RAL 7037).
This hood provides IP65 ingress protection per IEC 60529 and meets UL 50 / UL 50E type ratings 4, 4X, and 12. It is rated for an operating temperature range of -40°C to +125°C and supports at least 10,000 mating cycles when used with other HMC components.
The mechanical dimensions are 93.50mm length, 43.00mm width, and 76.00mm height. The net weight is 226 grams. Compliance includes RoHS, ELV, China RoHS, REACH (no listed SVHC substances), and California Proposition 65 (contains Nickel). It also meets fire protection requirements for railway vehicles per EN 45545-2 (2020-08).
IP65 per IEC 60529, also UL type rated 4, 4X, and 12.
-40°C to +125°C.
Aluminum die-cast with powder-coated finish in RAL 7037 (dust grey).
At least 10,000 mating cycles when used with other HMC components.
Single locking lever with a locking clip on the base bottom.
Size 16 B. Dimensions: 93.50mm x 43.00mm x 76.00mm.
Yes, it is RoHS compliant.
