| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| CSA C22.2 No. 182.3 | |
| Cable Entry Thread Size | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| ELV | |
| Features | |
| Fire Protection Railway | |
| Han-Easy Lock | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Lever Flammability Class | |
| Locking Material | |
| Locking Type | |
| Mating Cycles | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Seal Material | |
| Style | |
| Thread Size | |
| UL 1977 | |
| UL 50 / UL 50E Type Rating | |
| Width |

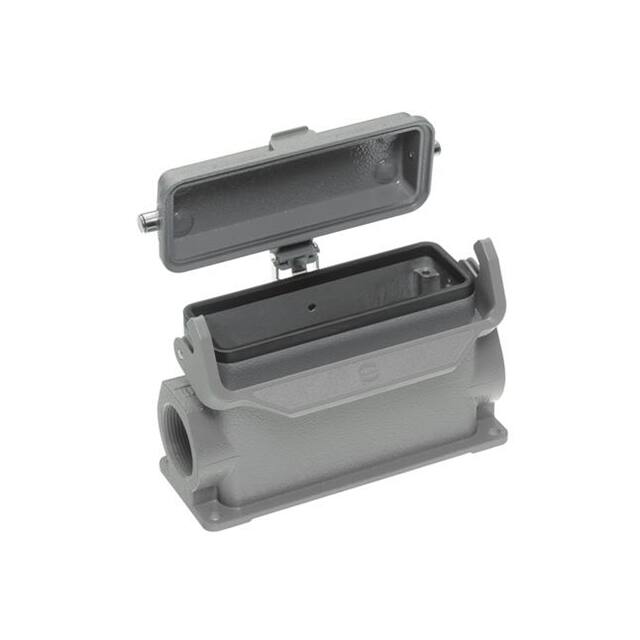

The Harting 09300242295 (Han 24B-asg2-LB-K-21) is a heavy duty connector housing base designed for industrial applications requiring reliable and robust connections. This side-entry base features a size 24B format with two PG21 cable entries, accommodating large wire gauges and multiple conductors. The housing is constructed from aluminium die-cast with a powder-coated finish in RAL 7037 dust grey, providing excellent durability and corrosion resistance.
The housing uses a single locking lever with Han-Easy Lock technology for quick and secure mating. It includes a metal cover and is rated IP65 for dust tight and water resistance in harsh environments. The operating temperature range is -40°C to +125°C, and it is rated for at least 500 mating cycles.
Compliance includes UL 50/50E Type 4, 4X, 12, UL 1977 (ECBT2.E235076), CSA C22.2 No. 182.3, and EN 45545-2 for railway fire protection. It is RoHS, ELV, China RoHS, and REACH compliant. The locking levers are made of polycarbonate with UL 94 V-0 flammability rating. This housing base is suitable for standard industrial connector applications and feed-through configurations.
The housing is made of aluminium die-cast with a powder-coated finish in RAL 7037 (dust grey).
The housing is rated IP65 according to IEC 60529, meaning it is dust tight and protected against water jets.
The limiting temperature for use as a connector is -40°C to +125°C per IEC 61984.
It has 2 cable entries of thread size PG21.
It uses a single locking lever with Han-Easy Lock technology.
It has UL 1977 (ECBT2.E235076), CSA C22.2 No. 182.3 (ECBT8.E235076), and UL 50/50E Type 4, 4X, 12 ratings.
Yes, it is RoHS compliant, ELV compliant, China RoHS e, and REACH Annex XVII compliant. SVHC present: Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate.
