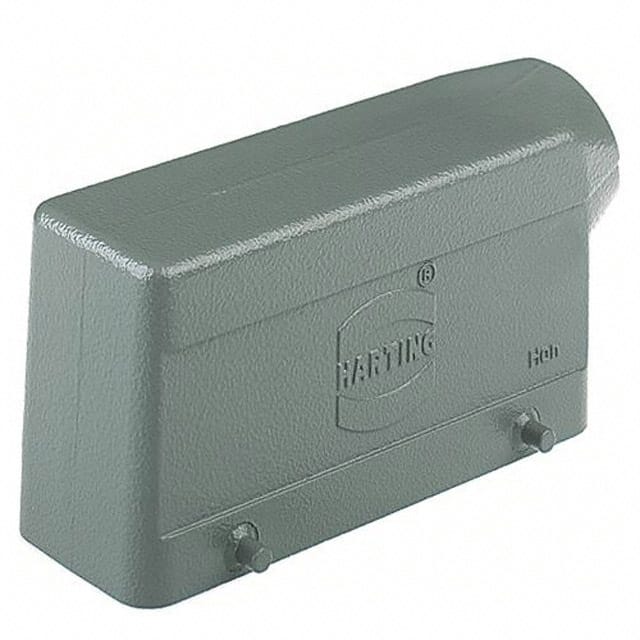

09300241520 Harting 09300241520 is a Han B hood with side entry, size 24B, PG21 cable entry. It features double locking lever, aluminum die-cast housing, and IP65/66/67 protection.
Mfr Part #:

09300241520

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09300241520 is a Han B hood with side entry, size 24B, PG21 cable entry. It features double locking lever, aluminum die-cast housing, and IP65/66/67 protection.
✓ Total Stock: 5 pcs

09300241520 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09300241520 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Failure Rate
Height
Housing Color
Housing Finish
Housing Material
Ingress Protection
Length
Lock Location
Mating Cycles
Operating Temperature
SVHC Present
Style
Tape & Reel
Thread Size
Type
Width
View Similar Products (0)

09300241520 Description

Short technical summary and product information.

The Harting 09300241520 is a heavy-duty connector hood from the Han B series. It is designed for side entry cable management with a single PG21 cable entry. The hood is size 24B and features a low construction profile. It is equipped with double locking levers for secure mating. The housing is made of aluminum die-cast with a powder-coated finish in RAL 7037 (dust grey). It provides ingress protection ratings of IP65, IP66, and IP67, making it suitable for industrial environments. The operating temperature range is -40°C to 125°C. It is rated for at least 500 mating cycles. The hood meets UL 50/50E type ratings 4, 4X, and 12. It is compliant with RoHS, ELV, and REACH. The product is manufactured in Germany and has a net weight of 200 g. It is typically used with Han B inserts and bases to form a complete connector system.

09300241520 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han B
Canonical Name: Han B Hood, Side Entry, Size 24B, PG21, Low Construction
Subcategory: Hoods

09300241520 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

09300241520 Features

  • Side entry hood for size 24B connectors.
  • Double locking lever for secure mating.
  • Aluminum die-cast housing with powder coating.
  • IP65, IP66, IP67 ingress protection.
  • Rated for -40°C to 125°C operation.

09300241520 Applications

  • Used in industrial connector systems.
  • Suitable for harsh environments requiring IP67.
  • Ideal for machinery and control cabinets.
  • Compatible with Han B inserts and bases.

09300241520 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type of this Harting hood?

It is a hood for heavy-duty connectors.

What size is this hood?

Size 24 B.

What thread size does the cable entry use?

PG21.

What is the ingress protection rating?

IP65, IP66, and IP67.

What is the operating temperature range?

-40°C to 125°C.

What locking mechanism does this hood have?

Double locking lever.

Is this product RoHS compliant?

Yes, it is RoHS compliant.
