| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Han-Easy Lock | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Flammability Class | |
| Locking Material | |
| Locking Type | |
| Material Flammability Class (Locking) | |
| Mating Cycles | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Thread Size | |
| Width |

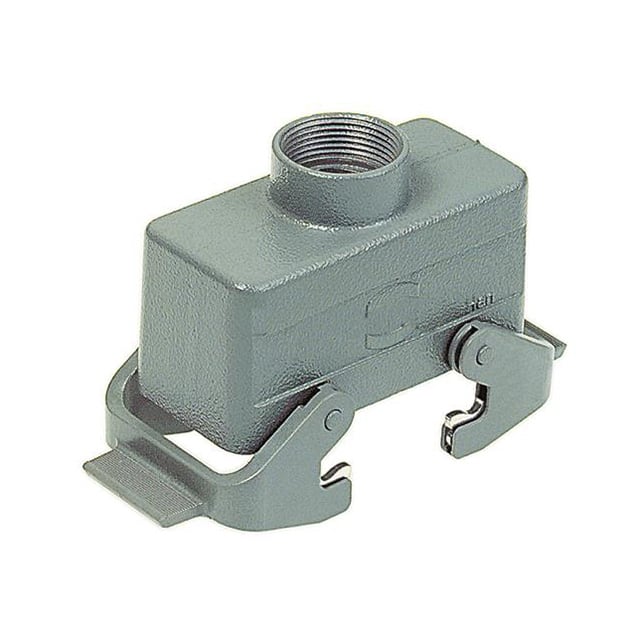

The Harting 09300241431 (Han 24 B-GG-QB-29) is a top entry hood designed for use with Han B series heavy-duty connectors. It accepts size 24B inserts and offers a single cable entry with a PG29 thread. The hood features a double locking lever mechanism with Han-Easy Lock for secure and tool-free mating.
The housing is constructed from die-cast aluminum with a powder-coated finish in RAL 7037 (dust gray), providing robust mechanical protection. The locking levers are made from polycarbonate and stainless steel, rated UL 94 V-0 for flammability. This hood is rated for ingress protection IP65, IP66, and IP67, making it suitable for demanding environments where dust and water ingress must be prevented.
Electrical ratings are defined by the chosen insert, while the hood itself supports a temperature range of -40°C to +125°C and is rated for at least 500 mating cycles. The product is RoHS compliant, ELV compliant, and China RoHS e. It contains REACH SVHC substances (Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate).
The hood is rated IP65, IP66, and IP67 per IEC 60529.
The operating temperature range is -40°C to +125°C.
The housing is made of aluminum, die cast with a powder coated finish in gray.
It uses double locking levers (on the hood) with Han-Easy Lock feature.
The hood is size 24 B, with dimensions 120.00mm x 43.00mm x 55.00mm.
The cable entry has a PG29 thread.
It is rated for at least 500 mating cycles.
