| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| Customs Tariff Number | |
| ELV | |
| ETIM Class | |
| GTIN | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Mechanism | |
| Lower Operating Temperature | |
| Mating Cycles | |
| Operating Temperature | |
| Operating Temperature Range | |
| Railway Fire Protection | |
| SVHC Present | |
| Seal Material | |
| Style | |
| Tape & Reel | |
| Upper Operating Temperature | |
| Weight | |
| Width | |
| eCl@ss |

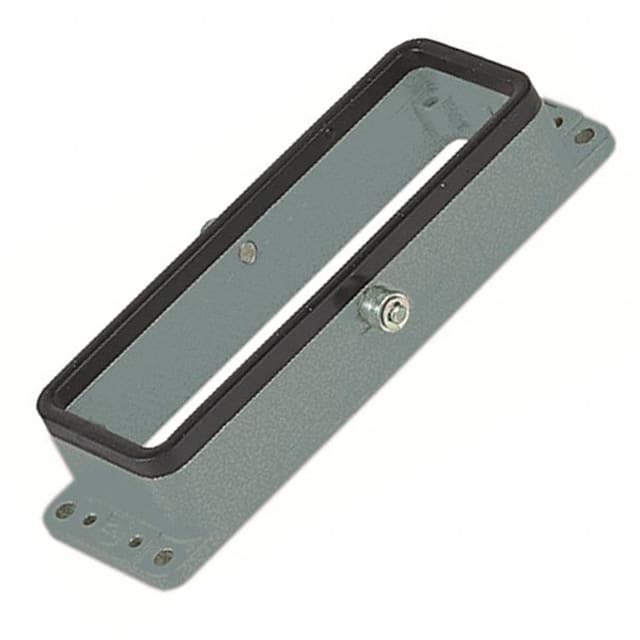

The Harting 09300240381 is a Han B base panel designed for central lever locking systems. It is a bulkhead mounted housing with bottom entry style, suitable for industrial connector applications. The housing is made of aluminum die-cast with a powder-coated finish in RAL 7037 (dust grey). It provides IP65 protection against dust and water ingress, making it suitable for harsh environments.
The base panel is size 24B and has dimensions of 140.00mm length, 43.40mm width, and 28.90mm height. It can withstand operating temperatures from -40°C to 125°C and is rated for at least 500 mating cycles. The seal material is NBR. The product is RoHS compliant, REACH unaffected, and meets ELV and China RoHS requirements. It also carries CE and DNV GL approvals and complies with railway fire protection standard EN 45545-2 (R1 and R7, hazard levels 1-3).
This base panel is intended for use with Han B hoods and connectors. It is a passive component that provides mechanical mounting and environmental sealing. No electrical ratings are specified as it is a housing only. The product weighs 107.5g and is manufactured in Germany.
IP65 - Dust Tight, Water Resistant.
-40°C to 125°C.
Aluminum, Die Cast with powder coating.
24 B.
Locking Clip (1) on Hood (central lever).
≥500.
CE, DNV GL, and railway fire protection EN 45545-2 R1 (HL 1-3), R7 (HL 1-3).
