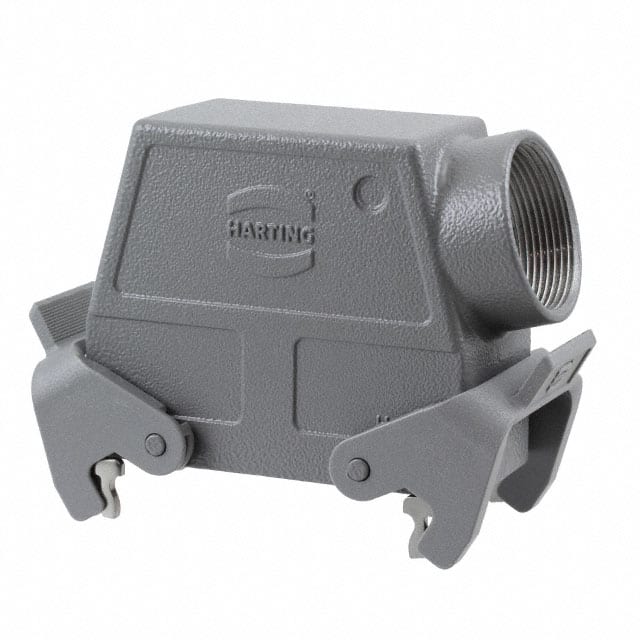

09300160531 Harting Han B hood with side entry for size 16B connectors. Features PG29 cable entry, double locking levers, and IP65/66/67 protection.
Mfr Part #:

09300160531

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han B hood with side entry for size 16B connectors. Features PG29 cable entry, double locking levers, and IP65/66/67 protection.
✓ Total Stock: 3 pcs

09300160531 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09300160531 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Failure Rate
Height
Housing Color
Housing Finish
Housing Material
Ingress Protection
Length
Lock Location
Mating Cycles
Operating Temperature
Prop 65
SVHC Present
Style
Tape & Reel
Thread Size
Weight
Width
View Similar Products (0)

09300160531 Description

Short technical summary and product information.

This is a Harting Han B hood, side entry, size 16B, part number 09300160531. It is designed for heavy-duty industrial connector applications. The hood accommodates a single PG29 cable entry and features double locking levers with Han-Easy Lock for secure mating.



The housing is made of aluminum die cast with a powder-coated finish in RAL 7037 dust grey. It provides ingress protection up to IP67 and is rated for UL 50/50E types 4, 4X, and 12. Operating temperature range is -40°C to +125°C with a minimum of 500 mating cycles.



Compliance includes RoHS, REACH (contains SVHC), and Prop 65 (lead, nickel). The locking levers are made of polycarbonate and stainless steel with V-0 flammability rating. This hood is suitable for use in harsh environments such as industrial automation, machinery, and transportation.

09300160531 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han B
Canonical Name: Han B Hood Side Entry HC 2 Levers PG 29
Subcategory: Side Entry Hood

09300160531 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Contains SVHC: Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate

09300160531 Features

  • Side entry hood for size 16B Han B connectors.
  • Single PG29 cable entry with double locking levers.
  • Aluminum die cast housing with powder coat finish.
  • IP65, IP66, and IP67 ingress protection.
  • Operating temperature range -40°C to 125°C.

09300160531 Applications

  • Used in heavy-duty industrial connector systems.
  • Suitable for machinery and control cabinets.
  • Ideal for transportation and railway applications.
  • Applicable in harsh environments requiring IP67 sealing.

09300160531 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this hood?

IP65, IP66, and IP67.

What is the operating temperature range?

-40°C to 125°C.

What cable entry size does it support?

1x Pg 29.

What locking mechanism is used?

Double locking lever with Han-Easy Lock.

What material is the housing made of?

Aluminum die cast with powder coating.

How many mating cycles is it rated for?

≥500 cycles.

What compliance certifications does it have?

CE, DNV GL, RoHS, REACH (contains SVHC), and Prop 65 (lead, nickel).
