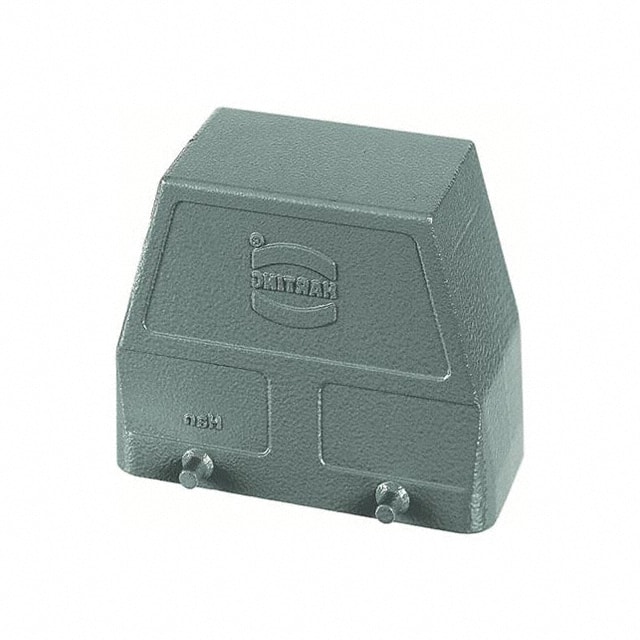

09300160520 Harting 09300160520 is a Han B heavy duty hood with side entry, size 16B, and PG21 thread. It features double locking lever, IP65/66/67 protection, and aluminum die-cast housing.
Mfr Part #:

09300160520

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09300160520 is a Han B heavy duty hood with side entry, size 16B, and PG21 thread. It features double locking lever, IP65/66/67 protection, and aluminum die-cast housing.
✓ Total Stock: 10 pcs
$ Price Range: $29.36 - $41.71

09300160520 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09300160520 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Failure Rate
Height
Housing Color
Housing Finish
Housing Material
Industrial Grade
Ingress Protection
Length
Lock Location
Mating Cycles
Operating Temperature
SVHC Present
Storage Temperature
Style
Tape & Reel
Thread Size
Weight
Width
View Similar Products (0)

09300160520 Description

Short technical summary and product information.

This Harting 09300160520 is a Han B series hood, size 16B, designed for side entry cable routing. It accommodates a single PG21 cable entry and uses a double locking lever mechanism for secure closure. The housing is constructed from aluminum die-cast with a powder-coated finish in RAL 7037 (dust grey).



Ingress protection ratings of IP65, IP66, and IP67 are specified, allowing use in dusty, water-resistant, and temporary submersion environments. The operating temperature range is -40°C to 125°C, with a minimum of 500 mating cycles. The hood is rated for industrial applications requiring robust connector housings.



Compliance includes UL 1977, CSA C22.2 No. 182.3, CE, and DNV GL. It also meets EN 45545-2 fire protection requirements for railway vehicles (R1 and R7, Hazard Levels 1-3). The product is RoHS, REACH, and ELV compliant, and contains California Proposition 65 listed substances. Packaging is a single piece.

09300160520 Quick Information

Product Type: Hood
Series: Han B
Canonical Name: Han B Hood Side Entry 4 Pegs PG 21
Subcategory: Hoods

09300160520 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH compliant (Annex XVII/XIV/SVHC not contained)

09300160520 Estimated Pricing

Qty Low High
1+ $41.71 $41.71
10+ $38.49 $38.49
25+ $36.08 $36.08
50+ $34.36 $34.36
100+ $32.72 $32.72
250+ $29.36 $29.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

09300160520 Features

  • Size 16B side entry hood.
  • Double locking lever mechanism.
  • IP65, IP66, IP67 ingress protection.
  • Aluminum die-cast housing with powder coating.
  • Rated for 500 mating cycles minimum.

09300160520 Applications

  • Industrial connector housings for heavy duty applications.
  • Used in railway vehicles per EN 45545-2.
  • Suitable for harsh environments requiring IP65/67.

09300160520 FAQs

5 frequently asked questions generated from this part’s specifications.
What type of connector hood is this?

This is a Han B heavy duty hood, size 16B, side entry with PG21 cable thread.

What is the ingress protection rating?

IP65, IP66, and IP67.

What is the operating temperature range?

-40°C to 125°C.

What is the housing material and finish?

Aluminum die-cast with powder coated finish in RAL 7037 (dust grey).

What approvals does the hood comply with?

UL 1977, CSA C22.2 No. 182.3, CE, DNV GL, and EN 45545-2 for railway fire protection.
