| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry Thread Size | |
| China RoHS | |
| Connector Type | |
| ELV | |
| Halogen Free | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Mating Cycles | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| Prop 65 | |
| SVHC Present | |
| Style | |
| Thread Size | |
| Width |

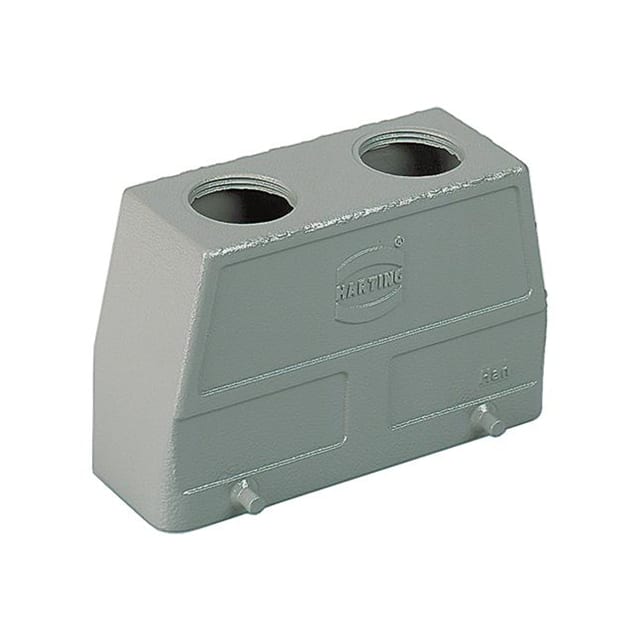

The Harting 09300160459 is a Han B heavy duty connector hood designed for top entry applications. It features dual PG16 cable entries with size 16B, making it suitable for standard industrial connector setups. The hood utilizes a double locking lever mechanism for secure mating and extraction.
Constructed from aluminum die-cast with a powder-coated finish in RAL 7037 (dust gray), this housing provides robust mechanical protection. It is rated for IP65, IP66, and IP67 ingress protection, ensuring resistance to dust and water immersion. The operating temperature range is -40°C to 125°C, and it is rated for at least 500 mating cycles.
This hood complies with RoHS, REACH, ELV, and China RoHS directives. It also meets California Proposition 65 requirements and is suitable for railway vehicle fire protection (EN 45545-2, HL 1-3). The compact dimensions of 93.50 x 43.00 x 76.00 mm and net weight of 209.8 g make it easy to integrate into various systems.
It is rated IP65, IP66, and IP67.
The cable entry thread size is PG16.
It has 2 cable entries.
The housing is aluminum die-cast with powder-coated finish.
The operating temperature range is -40°C to 125°C.
It uses a double locking lever.
Dimensions are 93.50 mm length, 43.00 mm width, and 76.00 mm height.
