| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| CSA Rating | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Fire Protection Railway | |
| Flammability Class (locking levers) | |
| Han-Easy Lock | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Housing Size | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Lever Material | |
| Locking Type | |
| Mating Cycles | |
| Mounting Type | |
| Net Weight | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Seal Material | |
| Storage Temperature | |
| Style | |
| UL Rating | |
| Width |

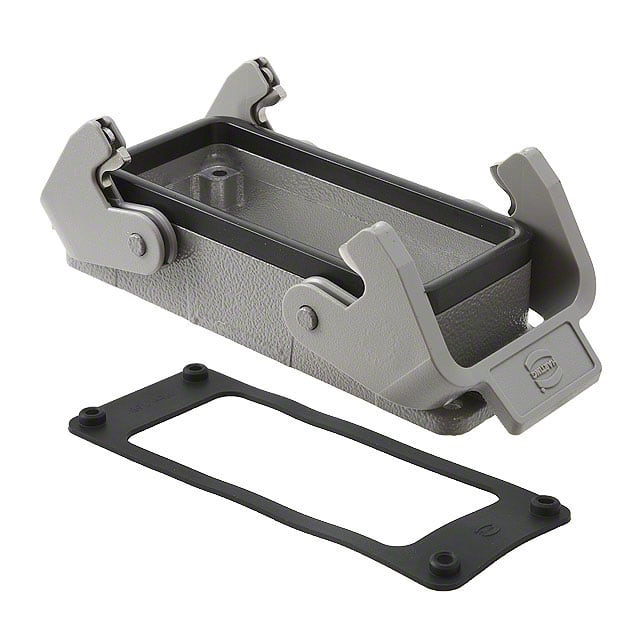

The Harting 09300160301 is a Han 16B-HBM-DL bulkhead mounted housing designed for industrial connector applications. It features a size 16B form factor with bottom entry cable routing and a double locking lever mechanism with Han-Easy Lock for secure mating. The housing is constructed from die-cast aluminum with a powder-coated RAL 7037 gray finish, providing durability and corrosion resistance. It includes an NBR seal for IP65 protection against dust and water ingress. The locking levers are made from polycarbonate and stainless steel, rated UL 94 V-0 for flammability. This housing supports up to 500 mating cycles and operates over a temperature range of -40°C to 125°C. It is suitable for panel mount installations and complies with UL 1977, CSA C22.2 No. 182.3, CE, and DNV GL approvals.
IP65 - Dust Tight, Water Resistant
-40°C to 125°C
≥500 mating cycles
Aluminum, Die Cast with powder coated finish
Double locking lever with Han-Easy Lock
Yes, RoHS compliant
Size 16 B
