| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Cable Entry Thread | |
| Connector Type | |
| Country of Origin | |
| Failure Rate | |
| Features | |
| Fire Protection | |
| Flammability Class (locking levers) | |
| Han-Easy Lock | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Material | |
| Locking Type | |
| Mating Cycles | |
| Net Weight | |
| Operating Temperature | |
| Prop 65 | |
| SVHC Present | |
| Seal Material | |
| Standard Package Quantity | |
| Storage Temperature | |
| Style | |
| Style (Entry) | |
| Thread Size | |
| UL Rating | |
| Width |

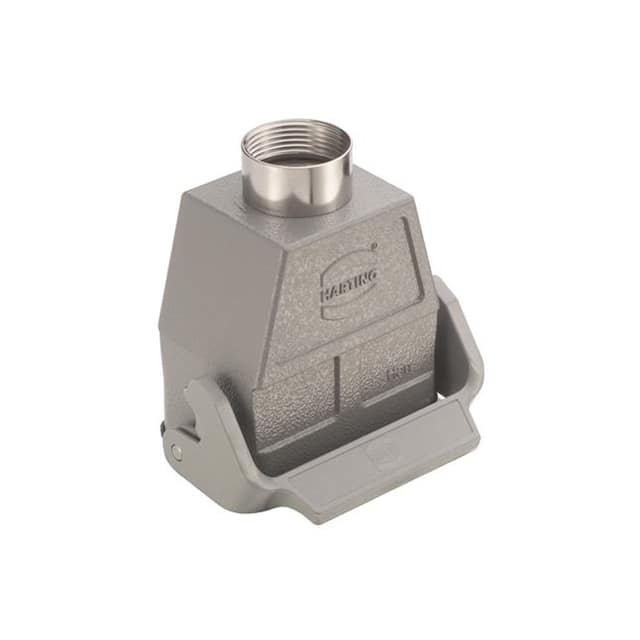

This Harting Han® B hood-coupling (part number 09300100753, Han 10B-kg-LB-29) is a size 10B top-entry cable-to-cable housing designed for standard industrial connector applications. The housing is made of powder-coated aluminum die-cast in RAL 7037 dust grey with an NBR seal and single locking levers made of polycarbonate (PC) and stainless steel with V-0 flammability class. It has one PG29 cable entry and supports at least 500 mating cycles.
Rated IP65 per IEC 60529, this hood is suitable for environments where dust ingress and water jets must be excluded. It operates over a wide temperature range of -40°C to 125°C and carries UL 1977 and CSA C22.2 No. 182.3 approvals. The Han-Easy Lock® feature simplifies latching without tools.
This part is RoHS compliant with exemption 6(c) and REACH contains SVHC (potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate and lead). It also meets fire protection requirements EN 45545-2 R22/R23 HL1-3 and has CE and DNV GL approvals.
IP65 per IEC 60529.
-40°C to +125°C.
At least 500 mating cycles.
Yes, RoHS compliant with exemption 6(c).
Aluminum die-cast with powder-coated finish.
PG29 (Pg 29).
