| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
85 pcs
|
85 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style |

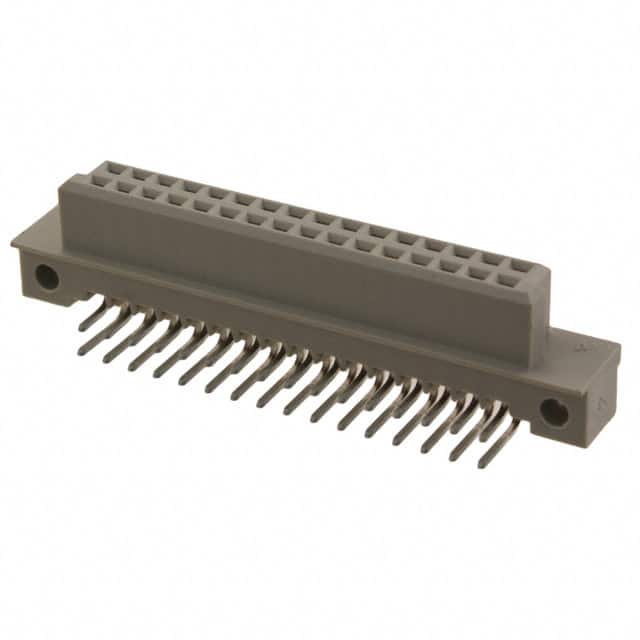

The Harting 09272326801 is a DIN 41612 receptacle connector designed for backplane and rack-and-panel applications. It offers 32 positions with all positions loaded, arranged in 2 rows at a 2.54mm pitch. The connector features a right angle through hole mounting style with solder termination, making it suitable for perpendicular board-to-board connections. The contacts are finished with gold for reliable conductivity and corrosion resistance. This connector is classified as Level/Class 2, indicating a standard performance level for industrial environments. It is RoHS3 compliant and has an MSL of 1 (unlimited). The 2Q style designation specifies the contact arrangement and keying. Typical applications include telecommunications, industrial control systems, and data processing equipment where robust and reliable connections are required.
32 positions, all loaded.
2.54mm (0.100 inches).
Through hole, right angle.
2 rows.
Gold.
2Q.
Class 2.
