09210073001 The Harting 09 21 007 3001 is a 7-position male insert for the Han D series, using crimp termination. It is rated for 10A at 50V and includes a PE contact.
Mfr Part #:

09210073001

Available from 1 distributors
Mfr Name: Harting
Harting
The Harting 09 21 007 3001 is a 7-position male insert for the Han D series, using crimp termination. It is rated for 10A at 50V and includes a PE contact.
✓ Total Stock: 104 pcs

09210073001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
104 pcs
On Request
104 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09210073001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Failure Rate
Gender
Industrial Grade
Insulation Resistance
Mating Cycles
Number of Contacts
Number of Positions
Operating Temperature Range
Rated Current
Rated Voltage
SVHC Present
Standards
Termination Style
View Similar Products (0)

09210073001 Description

Short technical summary and product information.

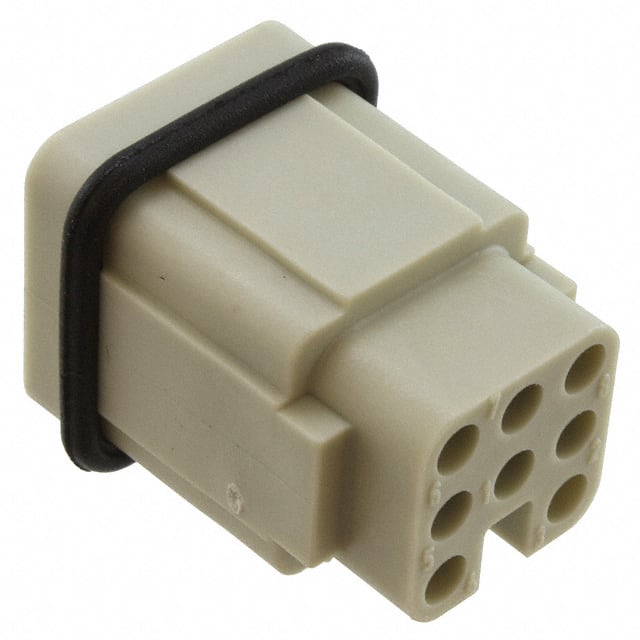

The Harting 09 21 007 3001 is a male insert for the Han D series of heavy duty connectors, without contacts. It features 7 positions with crimp termination and includes a protective earth (PE) contact.



Rated at 10A and 50V with an impulse voltage of 0.8 kV, it operates in pollution degree 3 environments. Insulation resistance exceeds 1e10 Ω and temperature range is -40°C to +125°C.



The insert is made of polyamide (PA) with a pebble grey color (RAL 7032), NBR seal, and UL 94 HB flammability rating. It complies with multiple standards including IEC 60664-1, IEC 61984, and UL 1977. Environmental compliance includes RoHS with exemption 6c, REACH with SVHC lead, and California Proposition 65. The part is packaged in quantities of 10 with a net weight of 7.75g.

09210073001 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han D
Canonical Name: Han D 7 Pos. M Insert Crimp
Subcategory: Heavy Duty Connector Inserts

09210073001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Contains SVHC: Lead

09210073001 Features

  • 7-position male crimp insert for Han D series.
  • Rated 10A at 50V with PE contact.
  • Crimp termination for conductor cross-sections 0.14-2.5 mm².
  • Operating temperature range -40°C to +125°C.
  • Compliant with UL 1977 and IEC 61984.

09210073001 Applications

  • Used in industrial heavy duty connector systems.
  • Ideal for machinery control and power distribution.
  • Suitable for railway applications with EN 45545-2 compliance.
  • Applicable in environments requiring pollution degree 3.

09210073001 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 09 21 007 3001 have?

7 positions.

What is the rated current of this insert?

10 A.

What is the rated voltage?

50 V.

What is the operating temperature range?

-40°C to +125°C.

Does it include a PE contact?

Yes.

What is the flammability rating?

UL 94 HB.

What standards does it comply with?

IEC 60664-1, IEC 61984, EN 175301-801, UL 1977, CSA C22.2 No. 182.3.
