| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Approvals | |
| Automotive Grade | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| Dimensions - Height | |
| Dimensions - Length | |
| Dimensions - Width | |
| ELV | |
| Failure Rate | |
| Fire Protection Standard | |
| Flammability Class (locking levers) | |
| GTIN | |
| Han-Easy Lock | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Ingress Protection (IP) Rating | |
| Lock Location | |
| Locking Material | |
| Locking Type | |
| Medical Grade | |
| Military Grade | |
| Net Weight | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Size | |
| SVHC Present | |
| Seal Material | |
| Storage Temperature | |
| Style | |
| Tape & Reel |

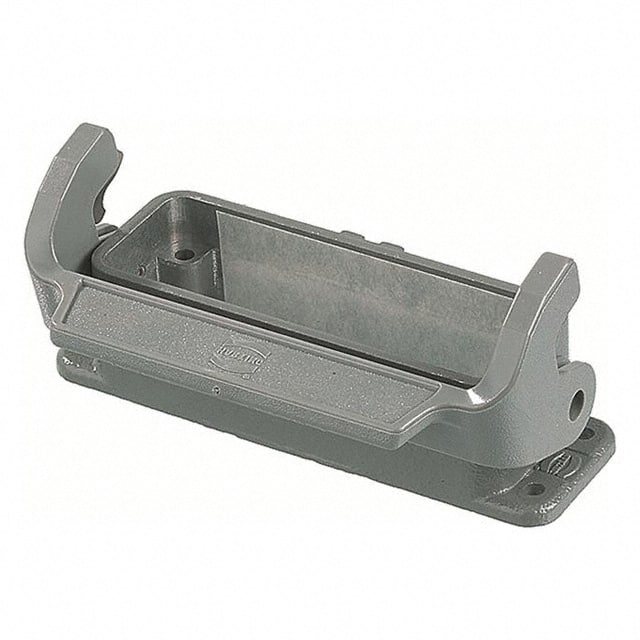

The Harting 09200160301 is a Han 16A-HBM-SL bulkhead mounted housing from the Han A® series. It features a bottom entry style and is designed for industrial applications requiring a robust and reliable connector interface. The housing is constructed from aluminum die-cast with a powder-coated finish in RAL 7037 (dust grey).
This housing provides IP65 protection against dust ingress and water jets, making it suitable for harsh environments. It is rated for a limiting temperature range of -40°C to +125°C according to IEC 61984. The single locking lever with Han-Easy Lock® ensures secure mating and easy handling.
The housing measures 96.00mm in length, 29.00mm in width, and 26.00mm in height, with a net weight of 63.2 g. It is supplied as a single piece per package. The part is RoHS3 compliant and carries approvals including UL 1977, CSA, CE, and DNV GL.
IP65 per IEC 60529, meaning dust tight and protected against water jets.
-40°C to +125°C (limiting temperature per IEC 61984).
Single locking lever with Han-Easy Lock®.
Aluminum die-cast with powder-coated finish, color RAL 7037 (dust grey).
UL 1977, CSA, CE, DNV GL, and EN 45545-2 (HL 1-3 R22/R23) for railway.
Yes, RoHS3 compliant as stated in the datasheet.
