| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval | |
| Colour | |
| Connector Type | |
| Degree of Protection | |
| Features | |
| Flammability | |
| Height | |
| Hood/Housing Seal | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Lever Type | |
| Limiting Temperatures | |
| Lock Location | |
| Locking Element | |
| Material | |
| Style | |
| Surface | |
| Thread Size | |
| Width |

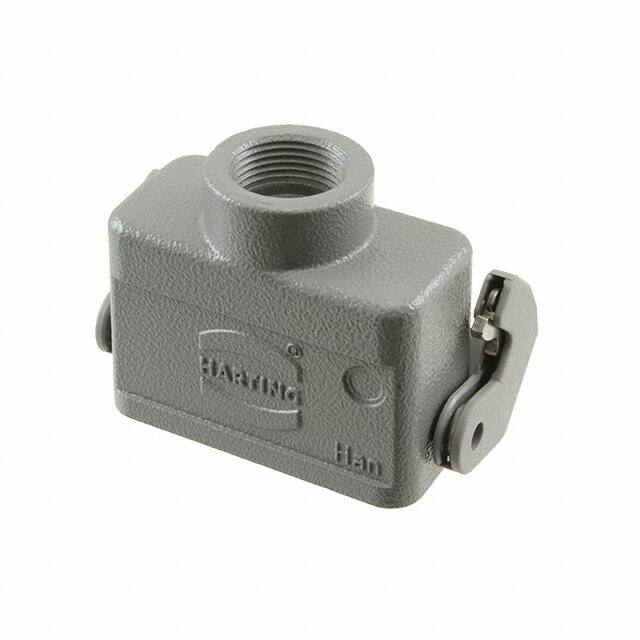

The Harting 09200101730 is a heavy duty connector hood coupling from the Han 3A series. It is designed for cable-to-cable applications with bottom entry configuration. The hood is made of zinc die-cast with a powder-coated RAL 7037 grey finish. It features a PG13.5 thread size and a locking clip on the hood top. Dimensions: length 62.70mm, width 29.50mm, height 42.00mm. The locking element is steel, zinc-plated, and the lever is metal. The hood/housing seal is NBR, and the operating temperature range is -40°C to +125°C. It is approved to UL 50 NEMA Type 12 and has flammability rating UL 94 V-0. The degree of protection is IP44 for coupled connector; IP65/IP67 can be achieved with seal screw 09 20 000 9918.
PG13.5
Zinc die-cast with powder-coated RAL 7037 grey finish.
-40°C to +125°C.
IP44 for coupled connector; IP65/IP67 can be achieved with seal screw 09 20 000 9918.
Locking clip on hood top.
UL 50 NEMA Type 12 and UL 94 V-0 flammability.
