| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Features | |
| Fire Protection Railway | |
| Flammability Class (Locking) | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Material (Locking) | |
| Mounting Type | |
| Net Weight | |
| Operating Temperature | |
| REACH Annex XIV | |
| REACH Annex XVII | |
| REACH SVHC | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Thread Size | |
| UL/CSA | |
| Width |

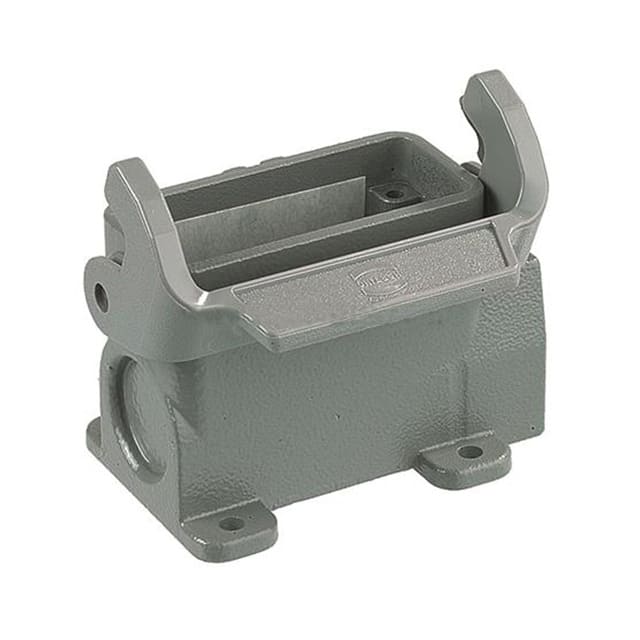

The Harting 09200100291 (Han 10 A-asg2-LB-16) is a heavy duty connector base designed for surface mounting in industrial applications. It features a side entry cable gland entry of 1x Pg 11 and uses a single locking lever with Han-Easy Lock technology for secure and easy mating.
Constructed from aluminium die-cast with a powder-coated finish in RAL 7037 (dust grey), the housing provides robust mechanical protection and corrosion resistance. The locking mechanism uses polycarbonate and stainless steel components with a V-0 flammability class rating.
This component is rated for operating temperatures from -40°C to 125°C and achieves IP65 ingress protection when mated, making it suitable for demanding environments. The housing meets multiple compliance standards including RoHS, REACH, UL 1977, and CSA C22.2. The overall dimensions are 87.90 mm length, 50.00 mm width, and 52.00 mm height, with a net weight of 157.56 g.
The IP rating is IP65, meaning it is dust-tight and protected against water jets when properly mated.
The operating temperature range is -40°C to 125°C.
The cable entry is 1x Pg 11.
Yes, it is RoHS compliant with exemption 6(c) for copper alloy containing up to 4% lead by weight.
The housing is made of aluminium die-cast with a powder-coated finish. The locking levers are polycarbonate and stainless steel.
