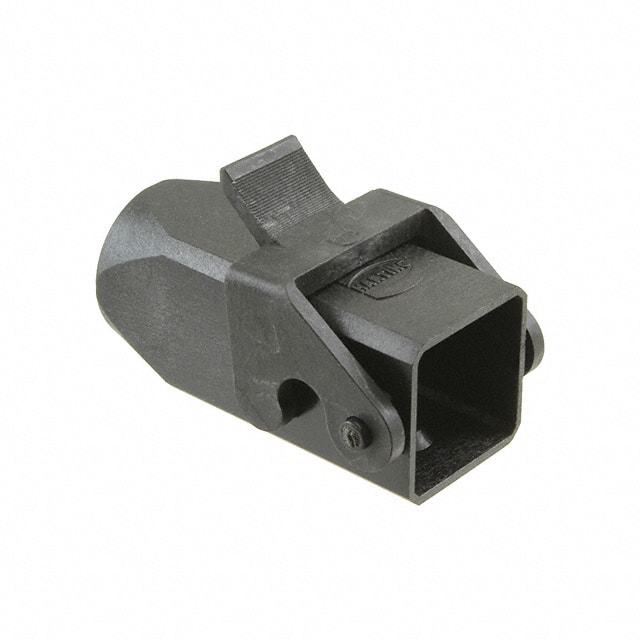

09200030727 Harting 09200030727 is a Size 3A top entry heavy-duty connector hood for cable-to-cable applications. It features a single PG11 cable entry, a polycarbonate housing in black RAL 9005, and a single locking lever.
Mfr Part #:

09200030727

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09200030727 is a Size 3A top entry heavy-duty connector hood for cable-to-cable applications. It features a single PG11 cable entry, a polycarbonate housing in black RAL 9005, and a single locking lever.
✓ Total Stock: 60 pcs

09200030727 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
60 pcs
On Request
60 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09200030727 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Features
Height
Housing Color
Housing Material
Industrial Grade
Ingress Protection
Length
Lock Location
Operating Temperature
Operating Temperature Range
SVHC Present
Storage Temperature
Style
Thread Size
Width
View Similar Products (0)

09200030727 Description

Short technical summary and product information.

The Harting 09200030727 is a Size 3A top entry hood from the Han A series, designed for cable-to-cable connections in industrial environments. It accepts one PG11 threaded cable entry, and is secured with a single locking lever.



The housing is molded from black polycarbonate (RAL 9005) with a UL94 V-0 flammability rating, offering an ingress protection of IP44 as standard. For enhanced protection, IP65/IP67 can be achieved by using a seal screw (sold separately).



This hood is approved to UL and CE standards and meets fire protection requirements for railway vehicles per EN 45545-2 (R22 HL1-3). It is supplied in bulk packaging of 10 pieces.

09200030727 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han 3A HCC/P-DL
Canonical Name: Han 3A-HCC/P-DL-1Pg11-black Connector Hood
Subcategory: Cable to Cable Hood

09200030727 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

09200030727 Features

  • Size 3A top entry configuration.
  • Single PG11 cable entry.
  • Polycarbonate housing with UL94 V-0 rating.
  • IP44 rated; IP65/IP67 with seal screw.
  • Single locking lever for secure mating.

09200030727 Applications

  • Cable-to-cable heavy duty connections.
  • Industrial automation and control cabinets.
  • Railway vehicle on-board equipment.

09200030727 FAQs

3 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this hood?

Standard rating is IP44. IP65 or IP67 can be achieved with a separate seal screw.

What is the operating temperature range?

-40°C to +125°C.

What material is the housing made of?

Polycarbonate (PC) in black RAL 9005, with a flammability rating of UL94 V-0.
