| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Pitch (Lead Spacing) | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Solder Pin Length | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style |

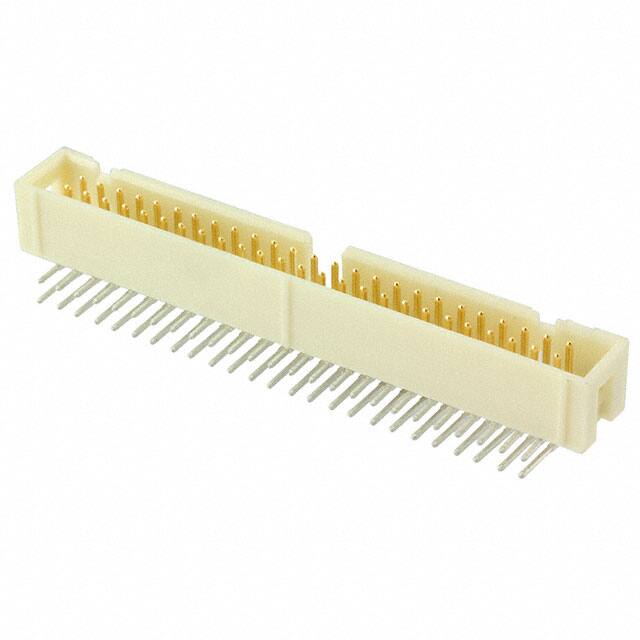

The Harting 09195506323 is a low-profile male header from the SEK series, designed for board-to-cable/wire applications. It provides 50 positions arranged in 2 rows with a standard 2.54mm pitch and 2.54mm row spacing. The connector features a shrouded 4-wall design with a latch holder fastening system, ensuring secure mating with compatible female connectors. Contact pins are square-shaped male pins made from copper alloy with a mating pin length of 6.10mm and a solder pin length of 2.9mm for through-hole right-angle mounting. The insulation body is beige, molded from glass-filled PCT material rated UL94 V-0 for flammability. The header includes a keying slot feature for polarization. Operating temperature range is -55°C to +125°C.
The pitch is 2.54mm (0.100") with a matching row spacing of 2.54mm.
It has 50 positions arranged in 2 rows with all positions loaded.
It is through-hole mounted with right-angle solder pins for angled connection.
Yes, it features a shrouded 4-wall design for pin protection and mating alignment.
The header is rated for operation from -55°C to +125°C.
