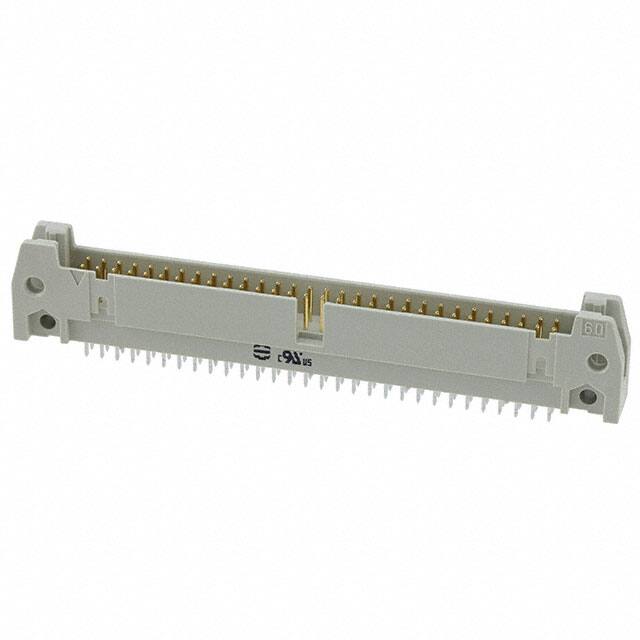

The Harting 09185606924 is a 60-position male header from the SEK Standard series, designed for board-to-cable connections. It features two rows of square pins with a 2.54mm pitch and a shrouded 4-wall design for secure mating. The contact termination uses wave soldering for PCB mounting, with contact material of copper alloy and a tin finish on the termination side.
Electrically, the connector is rated for 1A continuous current with a maximum contact resistance of 20 mΩ and an insulation resistance greater than 10⁹ Ω. Test voltage is 1 kV RMS. It operates across a wide temperature range from -55°C to +125°C, with a minimum of 250 mating cycles and insertion/withdrawal forces limited to 120 N.
The insulator is made of gray PBT thermoplastic with glass filling, rated UL94 V-0 for flammability. The connector is RoHS, REACH, ELV, and China RoHS compliant, and it meets EN 45545-2 R26 railway fire protection requirements.
60 positions
2.54mm (0.100 inches)
1 A
Through Hole with wave soldering termination
-55°C to 125°C
Copper alloy contacts with tin finish on termination side
Yes, confirmed in the datasheet
