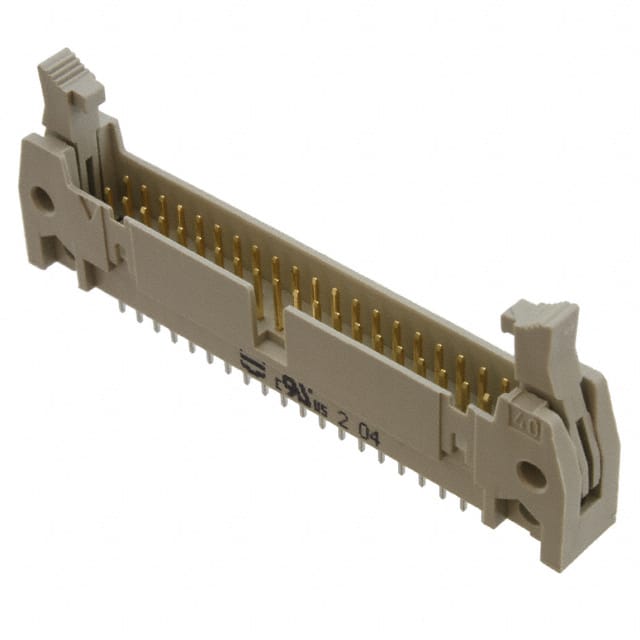

The Harting 09185406904 is a 40-position male pin header from the SEK series, designed for board-to-cable/wire connections. It features a 2.54mm pitch and 2 rows, with a through hole solder termination for reliable mounting on printed circuit boards. The header is fully shrouded with a 4-wall design, providing protection for the contacts and accurate mating with female sockets.
Key mechanical specifications include a contact material of copper alloy with a tin finish, contact length of 5.80mm, and overall contact length of 16.51mm. The insulation is made of glass-filled polybutylene terephthalate (PBT) in gray, with a height of 17.30mm. The housing includes a keying slot and mounting flange for alignment and secure attachment.
The connector is rated for operating temperatures from -55°C to 125°C and carries a UL94 V-0 flammability rating. The fastening type is latch lock/eject hooks (long version), enabling secure mating and easy disconnection. This product is suitable for use in industrial control, automation, and data communication equipment where reliable, high-density interconnections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.18 | $2.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
2.54mm
Through hole, solder termination.
-55°C to 125°C
Tin
Yes, it is shrouded - 4 wall.
Latch lock/eject hooks, long.
