| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

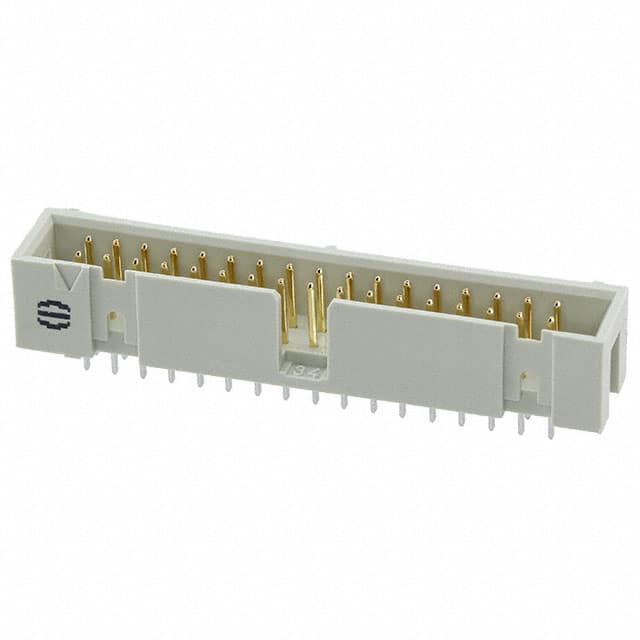

The Harting 09185346324 is a 34-position shrouded header connector featuring a 2.54mm (0.100") pitch and 2 rows with all positions loaded. It utilizes through hole mounting with solder termination, making it suitable for robust board-to-cable or wire-to-board applications. The connector is fully shrouded with a 4-wall design and includes a latch holder for secure mating, as well as a keying slot to ensure correct orientation.
The header is constructed with copper alloy contacts plated with tin, and the insulator is made of glass-filled PBT (Polybutylene Terephthalate) in gray. The contact length is 6.10mm and the insulation height is 8.89mm. It operates over a wide temperature range of -55°C to 125°C and meets UL94 V-0 flammability rating. The header is well-suited for industrial control systems, automation equipment, and other applications requiring reliable wire-to-board connectivity.
This header has 34 positions in 2 rows with all positions loaded.
The pitch is 2.54mm (0.100").
It uses through hole mounting with solder termination.
Yes, it is fully shrouded with a 4-wall design and includes a latch holder for secure fastening.
Contacts are copper alloy with tin plating.
The operating temperature range is -55°C to 125°C.
The insulation material is rated UL94 V-0.
