Mfr Part #:

09185305014

Name: 09185305014
Brand: Harting
SKU: 09185305014

Mfr Name: Harting

Description:

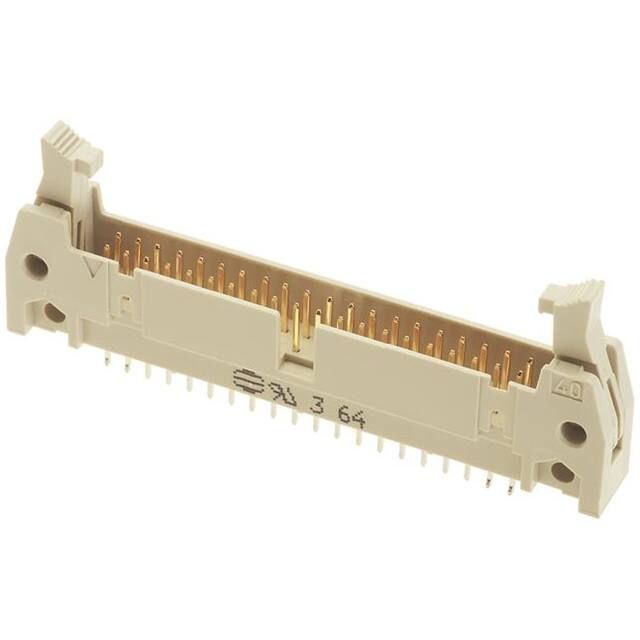

SEK/IDC STRAIGHT MALE, 2.9MM TAI

Stock on Request

09185305014 Description

Short technical summary and product information.

SEK/IDC STRAIGHT MALE, 2.9MM TAI

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Harting
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	0.114" (2.90mm)
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot, Mounting Flange
Insulation Color	Gray
Insulation Height	0.681" (17.30mm)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.650" (16.51mm)
Pitch	0.100" (2.54mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
