| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
187 pcs
|
187 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination |

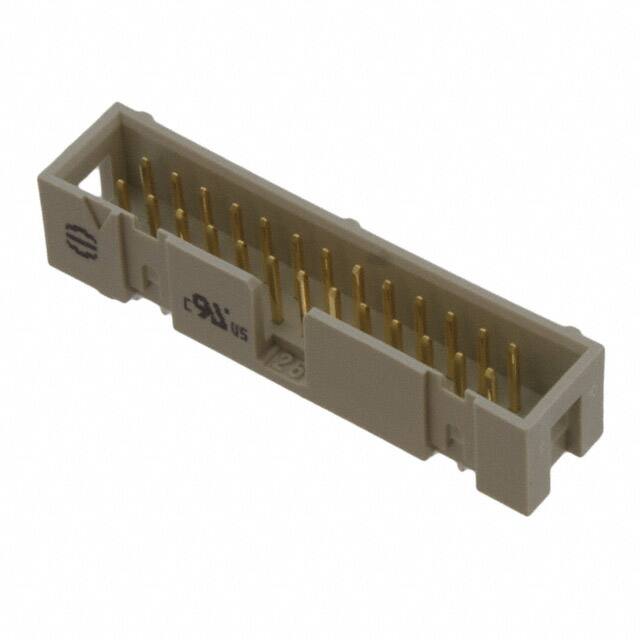

The Harting 09185267324 is a 26-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and a 4-wall shrouded design with a latch holder for secure mating. The header uses square male pin contacts made of copper alloy with a tin finish, and the insulator is gray glass-filled PBT rated UL94 V-0.
This through-hole component has a solder termination and includes a keying slot for alignment. The operating temperature range is -55°C to 125°C, making it suitable for a wide variety of industrial environments. The contact length is 6.10mm (0.240") and the insulation height is 8.89mm (0.350").
Designed for reliable connections in wire-to-board applications, this header is commonly used in control systems, automation equipment, and other electronic assemblies requiring a robust, polarized connector interface.
The pitch is 2.54mm (0.100").
It has 26 positions arranged in 2 rows.
Through hole mounting with solder termination.
-55°C to 125°C.
Yes, it is a shrouded - 4 wall design with a latch holder fastening type.
Tin finish on copper alloy contacts.
UL94 V-0.
