| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
58 pcs
|
58 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style |

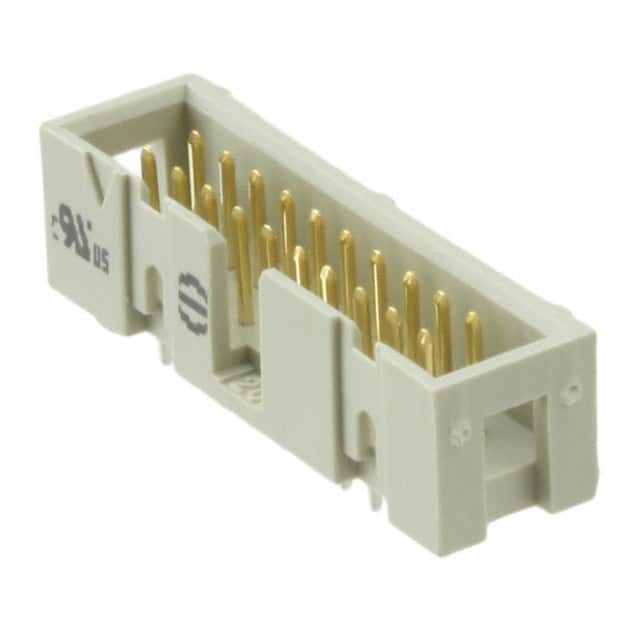

The Harting 09185207324 is a 20-position, 2-row male pin header designed for board-to-cable/wire applications. It has a 2.54mm (0.100") pitch and row spacing, making it compatible with standard ribbon cable connectors. The connector features a shrouded 4-wall design that protects pins during handling and mating.
Key specifications include a through hole mounting style with solder termination, tin-plated copper alloy square contacts, and a contact length of 6.10mm. The insulation is made of gray glass-filled PBT (Polybutylene Terephthalate) with a flammability rating of UL94 V-0. The operating temperature range is -55°C to 125°C.
The header includes a latch holder for positive retention and a keying slot to prevent misalignment. It is suitable for industrial control systems, automation equipment, and other applications requiring reliable cable-to-board connections.
20 positions arranged in 2 rows.
2.54mm (0.100") pitch and row spacing.
Through hole with solder termination.
-55°C to 125°C.
Glass-filled Polybutylene Terephthalate (PBT) with UL94 V-0 rating.
Tin plating on copper alloy contacts.
Yes, it uses a latch holder for secure mating.
