| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
122 pcs
|
122 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

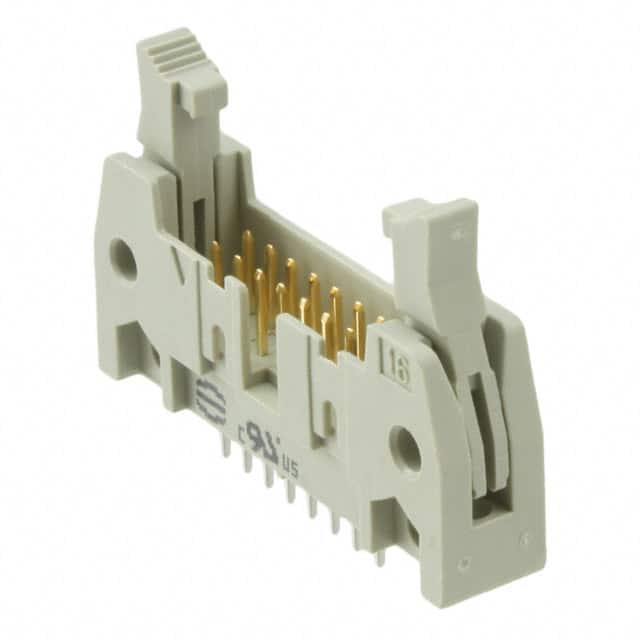

The Harting 09185167904 is a 16-position, 2-row shrouded header from the SEK series, designed for board-to-cable/wire connections. It features a 2.54mm pitch and 2.54mm row spacing, with square male pins made of copper alloy and a tin contact finish. The header is fully shrouded with a 4-wall design and includes long latch lock/eject hooks for secure mating. Keying slots and mounting flanges aid in alignment and panel mounting. The insulator is gray glass-filled PBT with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 125°C. This through-hole component has straight solder pins with an overall contact length of 16.51mm and an insulation height of 17.30mm.
16 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
Through hole with straight solder pins.
-55°C to 125°C.
Glass-filled PBT with UL94 V-0 rating.
Yes, it has long latch lock/eject hooks, a keying slot, and mounting flanges.
