| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
76 pcs
|
76 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination |

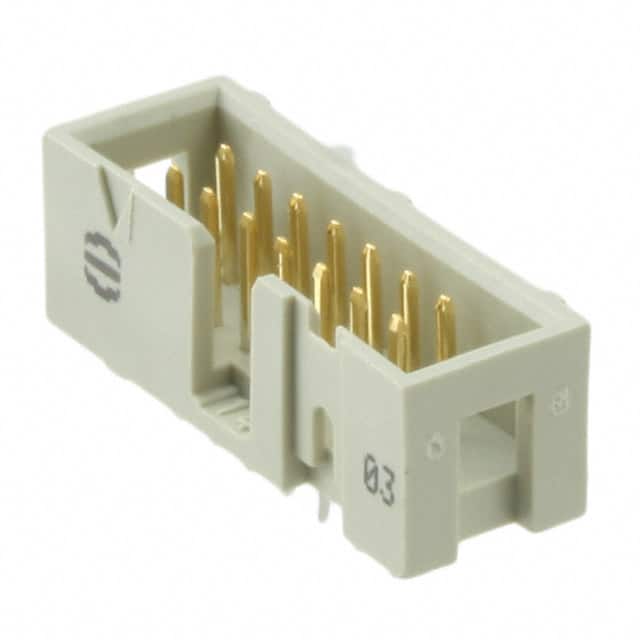

The Harting 09185147324 is a 14-position rectangular header connector designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2 rows of male square pins with tin-plated copper alloy contacts. The through hole mounting with solder termination ensures reliable mechanical attachment.
The connector is fully shrouded with a 4-wall design, providing protection and alignment during mating. A latch holder fastening type secures the connection, and a keying slot prevents incorrect mating. The insulation is made of glass-filled PBT (gray) with a UL94 V-0 flammability rating, suitable for environments requiring flame retardance.
Operating temperature range is -55°C to 125°C, making it appropriate for a wide variety of industrial and commercial applications. The contact length is 6.10mm, and the insulation height is 8.89mm. All 14 positions are loaded, providing full signal or power connectivity.
14 positions arranged in 2 rows.
2.54mm (0.100").
Through hole with solder termination.
-55°C to 125°C.
Glass-filled PBT (Polybutylene Terephthalate), color gray.
Latch holder for secure connection.
Tin plated on copper alloy.
