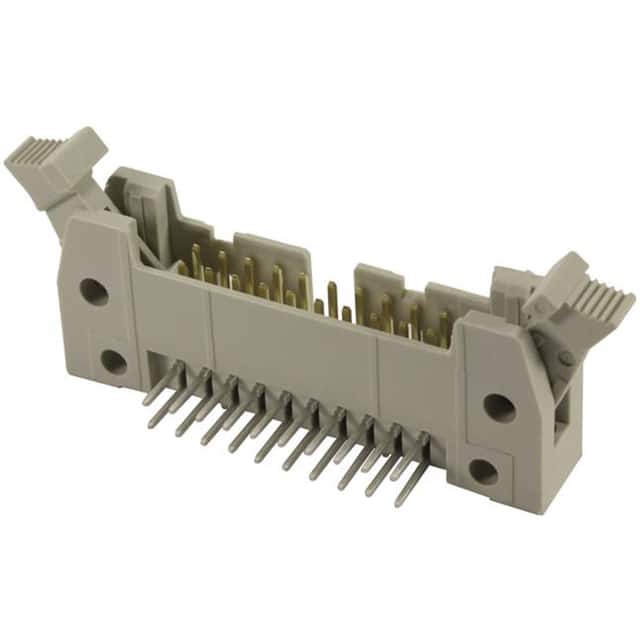

The Harting 09185146913 is a 14-position shrouded male pin header designed for board-to-cable/wire connections. It features a right-angle mounting orientation with through-hole solder termination ensuring reliable mechanical and electrical attachment to the PCB.
Key specifications include a 2.54mm pitch and 2 rows of contacts with all positions loaded. The header is fully shrouded with four walls providing protection and alignment. Fastening is achieved via short latch lock/eject hooks for secure mating. Additional features include a keying slot and mounting flange for polarization and panel retention.
The insulator is molded from glass-filled polybutylene terephthalate (PBT) rated UL94 V-0 for flammability and is colored gray. Contacts are made of copper alloy with tin plating. The operating temperature range spans -55°C to 125°C accommodating a wide variety of environments. Insulation height is 8.51mm and contact length is 6.10mm for proper engagement with mating connectors.
14 positions all loaded
2.54mm (0.100")
Through Hole Right Angle
-55°C to 125°C
Yes it is shrouded with a 4-wall design
Polybutylene Terephthalate (PBT) glass filled rated UL94 V-0
Short latch lock/eject hooks
