09185067904 The Harting 09185067904 is a 6-position, 2.54mm pitch, through hole header with shrouded 4-wall design and tin-plated square pins. It features latch lock eject hooks and operates from -55°C to 125°C.
Mfr Part #:

09185067904

Available from 1 distributors
Mfr Name: Harting
Harting
The Harting 09185067904 is a 6-position, 2.54mm pitch, through hole header with shrouded 4-wall design and tin-plated square pins. It features latch lock eject hooks and operates from -55°C to 125°C.
✓ Total Stock: 240 pcs

09185067904 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Cloos Electronic ✓
Non-Authorised Inventory information
240 pcs
On Request
240 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09185067904 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

09185067904 Description

Short technical summary and product information.

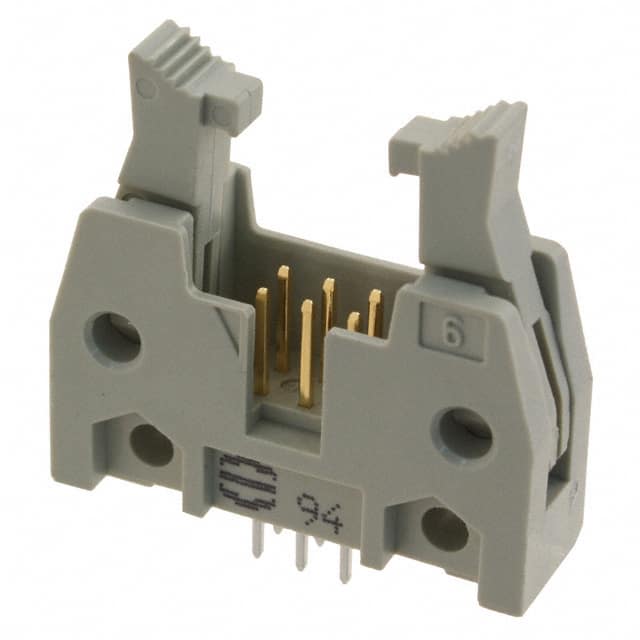

The Harting 09185067904 is a 6-position male pin header from the SEK series, designed for board-to-cable/wire connections. It features a 2.54mm pitch with dual rows and a through-hole mounting style with solder termination. The header is fully shrouded with a 4-wall design, providing robust protection for the contacts. The insulator is made from glass-filled Polybutylene Terephthalate (PBT) in gray, with a UL94 V-0 flammability rating. Contact material is copper alloy with a tin finish, with square pins having a contact length of 5.80mm and an overall contact length of 16.51mm. Additional design features include a keying slot for polarization, a mounting flange for secure attachment, and latch lock eject hooks (long type) for reliable mating retention. The operating temperature range covers -55°C to +125°C, suitable for industrial environments.

09185067904 Quick Information

Product Type: Header, Male Pins
Series: SEK
Canonical Name: Header, Male Pins, 6 Position, 2.54mm Pitch, Through Hole, Shrouded
Subcategory: Shrouded Header

09185067904 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

09185067904 Features

  • 6-position shrouded header with 2.54mm pitch.
  • Through-hole mounting with solder termination.
  • Operating temperature range -55°C to 125°C.
  • UL94 V-0 rated insulation material.
  • Latch lock eject hooks for secure mating.

09185067904 Applications

  • Board-to-cable/wire connections in industrial electronics.
  • Control and automation system interfaces.
  • Signal transmission in harsh environments.

09185067904 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the header have?

6 positions in 2 rows.

What is the pitch of this header?

2.54mm (0.100") pitch with 0.100" row spacing.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Tin on copper alloy contacts.

What is the insulation material and color?

Glass-filled Polybutylene Terephthalate (PBT) in gray, rated UL94 V-0.

What fastening type does this header use?

Latch lock/eject hooks, long type.
