| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Board | |
| Cable Termination | |
| Cable Type | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Country of Origin | |
| Features | |
| Halogen Free | |
| Housing Material | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Rated Current | |
| Row Spacing | |
| SVHC Present | |
| Standards | |
| Tape & Reel | |
| Termination Method |

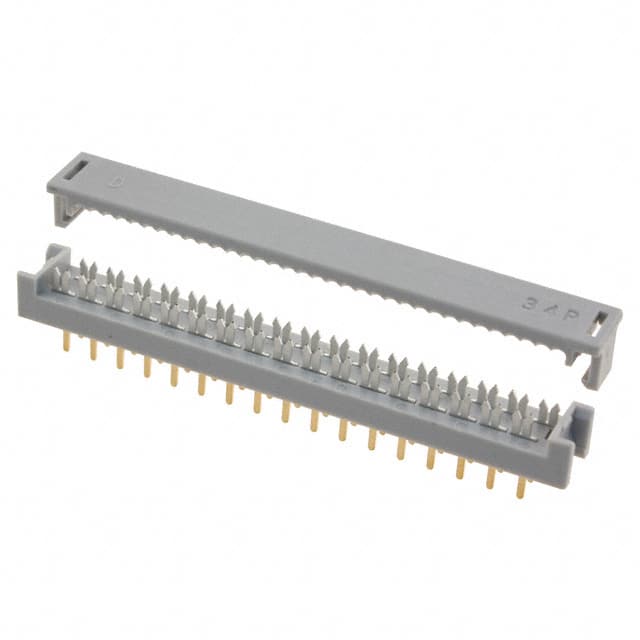

The HARTING 09181349622 is a 34-position DIP IDC header connector from the SEK Low-profile series. It is designed for PCB to cable connections using IDC termination for flat ribbon cable with 1.27mm pitch. The connector features a through-hole mounting with solder termination on the PCB side and IDC termination for the cable. It has a contact pitch of 2.54mm on the termination side and 1.27mm on the mating side. The housing is made of PBT thermoplastic with UL 94 V-0 flammability rating. Contacts are copper alloy with tin over nickel plating. Electrical ratings include a rated current of 2.6A, insulation resistance >10^9 Ω, contact resistance ≤35 mΩ, and test voltage of 1 kV. Operating temperature range is -55 to +105°C. The connector complies with RoHS, REACH, and China RoHS. It is suitable for applications requiring reliable board-to-cable connections in industrial and commercial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.21 | $2.21 |
| 10+ | $1.88 | $1.88 |
| 25+ | $1.68 | $1.68 |
| 100+ | $1.60 | $1.60 |
| 300+ | $1.48 | $1.48 |
| 500+ | $1.47 | $1.47 |
| 2,500+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions.
2.54 mm.
2.6 A.
1 kV.
Through hole.
-55 to +105 °C.
UL 94 V-0.
