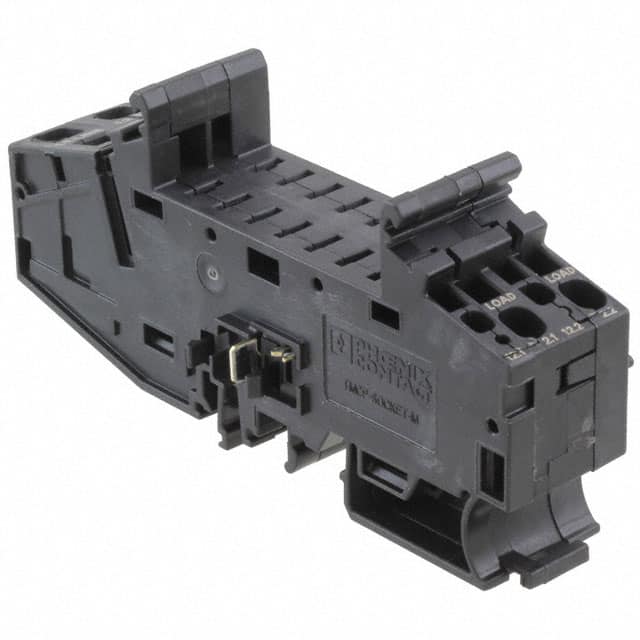

The Phoenix Contact 0916589, also known as the TMCP SOCKET M, is a modular socket element designed for the efficient mounting of TMCP and ECP plug-in circuit breakers onto standard 35 mm DIN rails. This 2-position base element facilitates the creation of signal loops across multiple circuit breakers without additional wiring, utilizing connections 13 and 14 in the termination elements.
Key electrical specifications include a rated voltage of 433 V AC and 65 V DC, with an operating voltage of 433 V AC. The nominal current is 50 A for the LINE input and 25 A for the LOAD output, with a rated current of 50 A. It features a rated insulation voltage of 1500 V and a degree of pollution of 2. The connection method is spring-cage, ensuring secure and reliable connections.
Constructed from PA-F insulating material with a V0 flammability rating according to UL 94, this socket element measures 115 mm in height, 25 mm in width, and 110.5 mm in depth. It is designed for a 35 mm DIN rail mounting system. The black color and large-surface labeling options enhance usability and organization in control panels.
This component is suitable for applications requiring flexible circuit breaker configurations and individual protection. Its design allows for the free combination of different circuit breaker types on a single module, with separate signal requests for each breaker and potential distribution via bridges.
The operating voltage is 433 V AC.
The rated current is 50 A.
It uses a spring-cage connection.
The flammability rating is V0 according to UL 94.
The dimensions are 115 mm in height, 25 mm in width, and 110.5 mm in depth.
The packing unit is 10 pieces.
