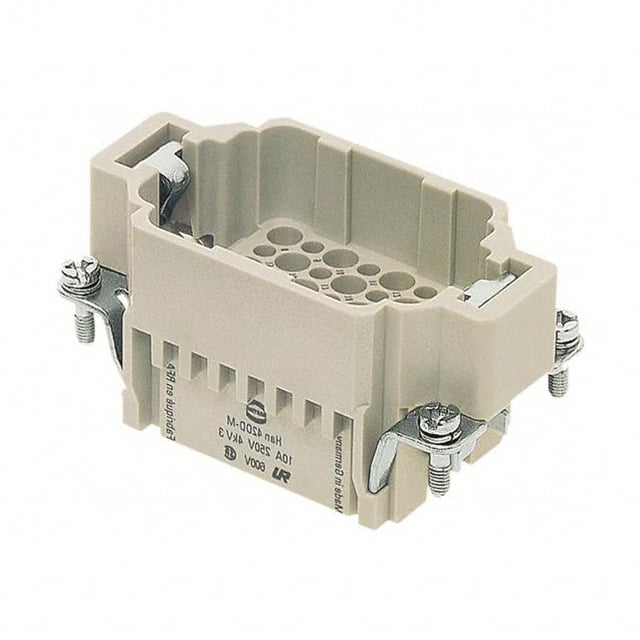

09160423001 Harting 09160423001 is a Han DD male insert with 42 signal contacts plus one PE contact. It is rated for 10 A and 250 V (IEC) or 600 V (UL/CSA) and uses crimp termination.
Mfr Part #:

09160423001

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09160423001 is a Han DD male insert with 42 signal contacts plus one PE contact. It is rated for 10 A and 250 V (IEC) or 600 V (UL/CSA) and uses crimp termination.
✓ Total Stock: 3 pcs
$ Price Range: $23.63 - $33.66

09160423001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09160423001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Country of Origin
Current Rating (Amps)
Gender
Industrial Grade
Insulation Resistance
Mating Cycles
Number of Positions
Operating Temperature
SVHC Present
Storage Temperature
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

09160423001 Description

Short technical summary and product information.

The Harting 09160423001 is a male insert from the Han DD series, designed for use in heavy-duty connector applications. It features 42 signal contacts plus a dedicated PE (ground) contact, providing a total of 43 positions in a size 10B housing. The insert is rated for a nominal current of 10 A and has a rated voltage of 250 V per IEC 60664-1 and IEC 61984, or 600 V per UL 1977 and CSA C22.2 No. 182.3. It is rated for an impulse voltage of 4 kV and a pollution degree of 3.



The insert accepts conductors with a cross-section of 0.14 to 2.5 mm² and uses crimp termination, requiring crimp contacts to be ordered separately. It is rated for a minimum of 500 mating cycles and operates over a temperature range of -40°C to 125°C. The insert body is RAL 7032 (pebble grey) and is made of material with a UL 94 V-0 flammability rating. The net weight is 30 g.

09160423001 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han DD
Canonical Name: Han 42DD-SMC-MI-CRT Insert Male 42Pos+1Gnd Crimp
Subcategory: Heavy Duty Connector Insert

09160423001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

09160423001 Estimated Pricing

Qty Low High
1+ $33.66 $33.66
10+ $29.85 $29.85
25+ $28.23 $28.23
50+ $26.99 $26.99
100+ $26.03 $26.03
250+ $24.33 $24.33
500+ $23.63 $23.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

09160423001 Features

  • 42 signal contacts plus 1 PE ground contact.
  • Rated for 10 A and 250 V IEC.
  • Rated for 600 V UL/CSA.
  • Crimp termination for 0.14-2.5 mm² wire.
  • Rated for 500 mating cycles minimum.

09160423001 Applications

  • Used in heavy-duty industrial connector systems.
  • Suitable for machinery and control cabinet wiring.
  • Ideal for power and signal distribution applications.
  • Used in railway rolling stock (EN 45545-2 compliant).

09160423001 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Harting 09160423001 insert have?

It has 42 signal contacts plus 1 PE (ground) contact, for a total of 43 positions.

What is the current rating of this insert?

The nominal current rating is 10 A.

What is the voltage rating of the 09160423001?

The rated voltage is 250 V per IEC 60664-1/IEC 61984 and 600 V per UL 1977/CSA C22.2 No. 182.3.

What termination method does this insert use?

It uses crimp termination. Crimp contacts must be ordered separately.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

Is the 09160423001 RoHS compliant?

Yes, the datasheet confirms RoHS compliance.

What wire sizes does this insert accept?

It accepts conductors with a cross-section of 0.14 to 2.5 mm².
