| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Cable Diameter Range | |
| Connector Type | |
| Country of Origin | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Locking Type | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Net Weight | |
| Package Quantity | |
| Prop 65 | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Storage Temperature | |
| Temperature Range | |
| Type | |
| UL/CSA Certification |

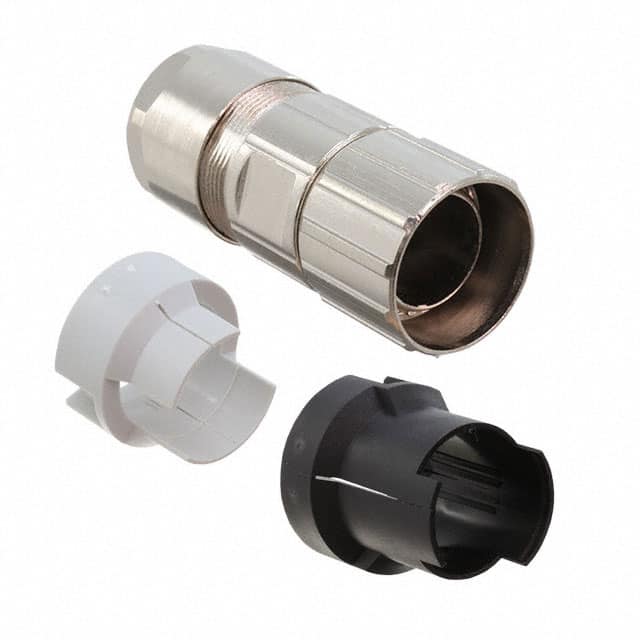

This is a M23 circular connector insert shell (hood) from HARTING, part number 09151000492. It is designed for use with female sockets or male pins and features a ComLock rapid locking mechanism for quick and secure connection. The shell is made of copper-zinc alloy with nickel plating, providing durability and shielding.
Key specifications include a temperature range of -40°C to +125°C, IP67 and IP69K protection when locked, shielding against EMI, and a clamping range of 7-12mm cable diameter. It is UL 1977 certified (ECBT2.E235076) and RoHS/REACH compliant.
The housing is silver in color, free hanging (in-line) mounting type, and comes with a backshell and coupling nut. Packaging includes 5 pieces per unit, with a net weight of 90.34g each. This product is manufactured in Germany.
Free hanging (in-line) mounting.
ComLock rapid locking.
IP67 and IP69K when locked.
-40°C to +125°C.
7 to 12 mm.
Copper-zinc alloy with nickel plating.
Yes, RoHS3 compliant.
