| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
343 pcs
|
343 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| Conductor Cross Section | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Termination | |
| Country of Origin | |
| ELV | |
| Lead Style | |
| Mating Cycles | |
| Net Weight | |
| Packaging Quantity | |
| Pin or Socket | |
| Rated Current | |
| SVHC Present | |
| Specification | |
| Stripping Length | |
| Tape & Reel | |
| Type | |
| Wire Gauge |

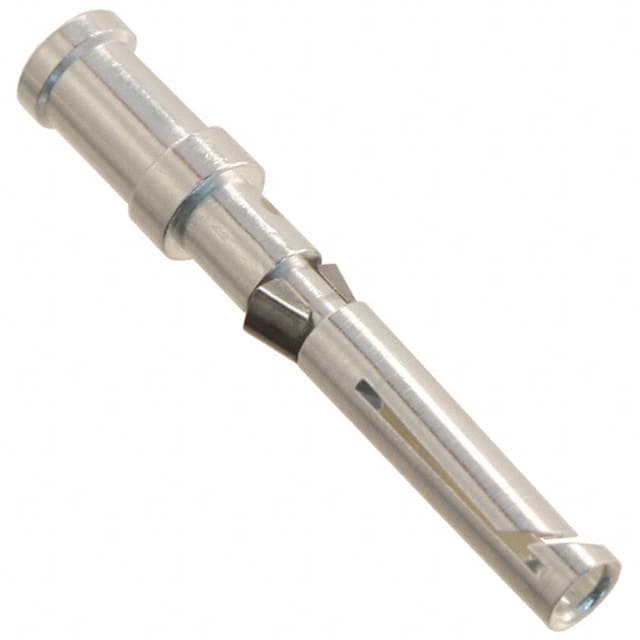

The Harting 09150006201 is a machined crimp socket contact from the Han D series, designed for heavy-duty connector applications. It accommodates 16 AWG (1.5 mm²) conductors with a stripping length of 8 mm and features a silver-plated copper alloy finish with a thickness of 118.1µin (3.00µm).
Electrical performance includes a rated current of ≤10 A and a contact resistance of ≤3 mΩ, ensuring reliable power and signal transmission. The contact is rated for at least 500 mating cycles, making it suitable for frequent connection and disconnection in industrial environments.
Termination is via crimping, providing a secure and repeatable connection. The part is RoHS compliant with exemption 6(c) for lead in copper alloy, and it meets REACH and California Proposition 65 requirements with a lead content declaration. Packaging is 100 pieces per bag, with a net weight of 0.679 g each.
≤10 A.
16 AWG (1.5 mm²).
≤3 mΩ.
≥500 cycles.
Silver plated, 118.1µin (3.00µm).
Yes, with exemption 6(c) for lead in copper alloy (up to 4% lead by weight).
100 pieces.
