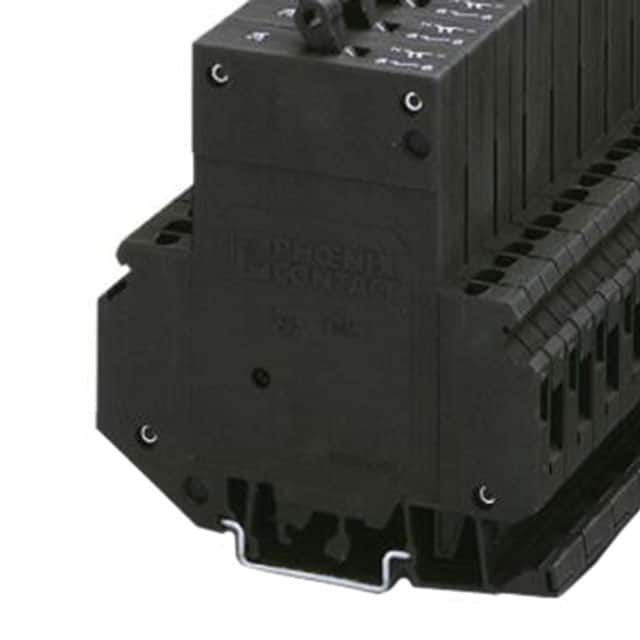

This Phoenix Contact 0914866 is a thermomagnetic circuit breaker designed for reliable circuit protection. It features a 2-pole configuration and a fast-blow fuse type.
The device has a rated current of 6A and a rated voltage of 250V AC (or 433V AC for 3-phase applications) and 65V DC. It offers a rated short-circuit switching capacity of 800A (AC) and 2500A (DC).
For ease of installation, the circuit breaker is designed for DIN rail mounting (35 mm). It includes 1 normally open (N/O) and 1 normally closed (N/C) auxiliary contact.
Key specifications include a height of 82.5 mm, width of 25 mm, and depth of 96 mm. The operating ambient temperature range is -30°C to 60°C. The device supports conductor cross-sections from 0.2 mm² to 6 mm² for solid conductors and up to 4 mm² for flexible conductors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 6 A.
The rated voltage is 250 V AC and 65 V DC.
It has 2 poles.
It supports DIN rail mounting.
The operating ambient temperature range is -30 °C to 60 °C.
