| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Country of Origin | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Length | |
| Mounting Type | |
| Number of Levels | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Terminal Type | |
| Voltage Rating | |
| Width |

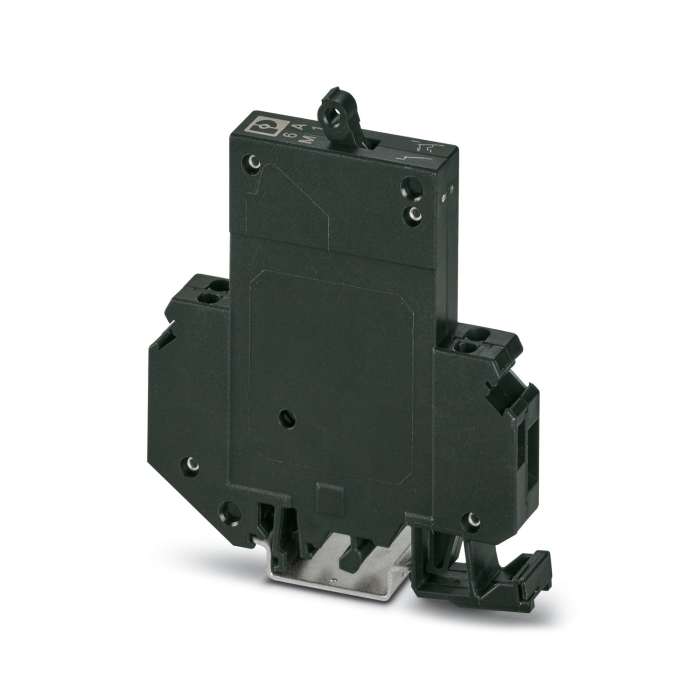

This Phoenix Contact 0914688 is a thermomagnetic circuit breaker with a single pole and a normal blow fuse type. It features a universal foot for easy mounting on NS 32 or NS 35 DIN rails.
The device has a nominal current rating of 6A and can handle a nominal voltage of 250V AC or 65V DC. It operates within an ambient temperature range of -30°C to 60°C.
Connection is made via screw terminals, supporting solid and stranded conductors ranging from 0.2 mm² to 6 mm² (solid) and 0.2 mm² to 4 mm² (stranded). It also supports dual conductor connections within specified ranges.
The circuit breaker has a breaking capacity of 2000A and features a lever actuator for resetting. Its dimensions are 12.5mm in width, 83.5mm in length, with varying heights depending on the mounting rail type (96mm for NS 35/7.5, 103.5mm for NS 35/15, and 100.5mm for NS 32). The insulating material is PA66 and it has an inflammability class of UL 94 V-2.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current rating is 6A.
It has a nominal voltage rating of 250V AC and 65V DC.
It is designed for DIN rail mounting.
The ambient operating temperature range is -30°C to 60°C.
The breaking capacity is 2000A.
The country of origin is GERMANY.
