| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Color | |
| Connection Method | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Length | |
| Mounting Type | |
| Number of Levels | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating | |
| Width |

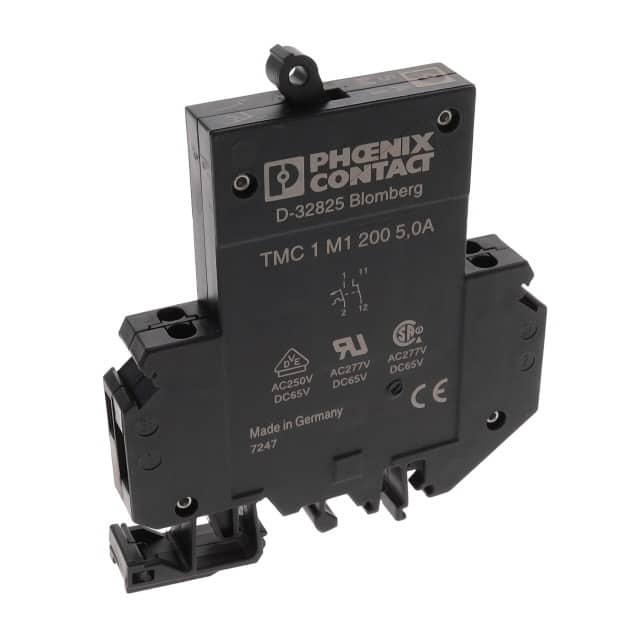

The Phoenix Contact 0914675 is a thermomagnetic device circuit breaker designed for reliable circuit protection. This 1-pole breaker operates with a nominal current of 5A and offers voltage ratings of 250V AC and 65V DC.
Designed for easy installation, it features DIN rail mounting and a screw connection method. The breaker has a width of 12.5 mm and a length of 83.5 mm. Its insulating material is PA66 and it has an inflammability class of UL 94 V-2.
Key technical specifications include a pollution degree of 2 and a surge voltage category of II. The ambient operating temperature range is from -30°C to 60°C. Connection data supports solid and stranded conductors with various cross-section ranges, including options with ferrules.
This circuit breaker is suitable for applications requiring robust protection against overcurrents and short circuits, with a focus on industrial and control panel environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current rating is 5A.
It is rated for 250V AC and 65V DC.
It uses DIN Rail mounting.
The ambient operating temperature range is -30°C to 60°C.
The connection method is screw connection.
It has 1 pole.
