| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Breaker Type | |
| Connection Method | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Mounting Type | |
| Number of Poles | |
| Number of Positions | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating | |
| Width |

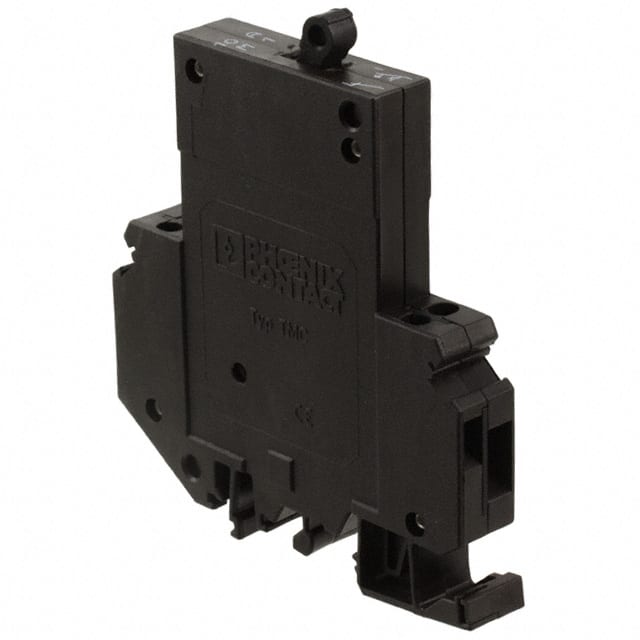

The Phoenix Contact 0914633 is a thermomagnetic device circuit breaker with a single pole. It offers a nominal current of 2A and can handle a nominal voltage of 250V AC and 65V DC. The breaker type is thermal magnetic, and it features a lever actuator.
Designed for efficient installation, this circuit breaker utilizes a screw connection method and is suitable for DIN rail mounting. It supports a wide range of conductor cross-sections, from 0.2 mm² to 6 mm² for solid conductors and up to 4 mm² for stranded conductors. Specific configurations for stranded conductors with ferrules, including TWIN ferrules, are also supported.
The operating ambient temperature range for this device is -30 °C to 60 °C. The insulating material is PA66, and it meets the UL 94 V-2 inflammability class. Its dimensions include a width of 12.5 mm, with varying heights depending on the mounting rail (NS 35/7.5, NS 35/15, or NS 32).
This circuit breaker is classified under Pollution Degree 2 and Surge Voltage Category II. It is also noted as being RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current rating is 2A.
The nominal AC voltage rating is 250V.
The nominal DC voltage rating is 65V.
The operating ambient temperature range is -30°C to 60°C.
It is designed for DIN rail mounting.
It uses a screw connection method.
The width is 12.5 mm.
