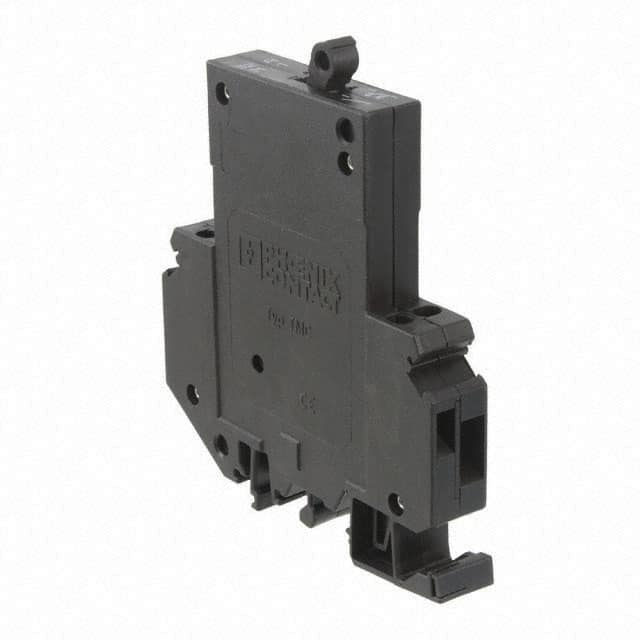

This Phoenix Contact 0914455 is a thermomagnetic circuit breaker designed for reliable overcurrent protection. It features a single pole and a nominal current rating of 2A, with a nominal voltage of 250V AC and 65V DC.
The breaker is suitable for operation within an ambient temperature range of -30°C to 60°C. It supports a wide range of conductor cross-sections, including solid, stranded, and stranded with ferrules, accommodating sizes from 0.2 mm² up to 6 mm² for solid conductors and up to 4 mm² for stranded conductors.
Mounting is facilitated via DIN rail, utilizing a screw connection method for wiring. The dimensions are 12.5 mm in width, 83.5 mm in length, with varying heights depending on the DIN rail type (NS 35/7.5, NS 35/15, or NS 32).
Key electrical and mechanical specifications include a surge voltage category of II and an insulating material group of II. The device is manufactured in Germany and has a custom tariff number of 85362010.
The circuit breaker is rated for 250VAC and 65VDC.
-30°C to 60°C.
2A.
DIN rail mounting.
Screw connection with M3 thread.
Thermal magnetic.
1 pole.
