| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Breaker Type | |
| Color | |
| Connection Method | |
| Current Rating (Amps) | |
| Fuse Type | |
| Length | |
| Mounting Type | |
| Number of Poles | |
| Number of Positions | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating | |
| Width |

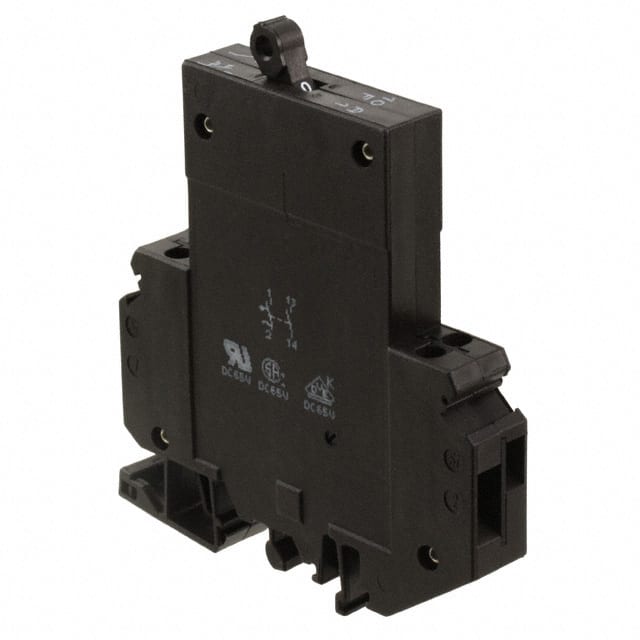

The Phoenix Contact 0914099 is a single-pole thermomagnetic device circuit breaker designed for reliable circuit protection. It features a nominal current rating of 2A and a nominal voltage of 250V AC, with a DC voltage rating of 65V.
This circuit breaker utilizes a screw connection method and supports conductor cross-sections ranging from 0.2 mm² to 6 mm² for solid wire and 0.2 mm² to 4 mm² for stranded wire. It is compatible with AWG sizes 24 to 10. The device has a width of 12.5 mm and is designed for DIN rail mounting (35 mm).
Constructed with PA66 insulating material, it meets UL 94 V-2 flammability standards. The operating ambient temperature range is -30°C to 60°C. The circuit breaker has a pollution degree of 2 and belongs to Surge Voltage Category II and Insulating Material Group II.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current rating is 2A.
The nominal AC voltage is 250V.
The operating ambient temperature range is -30°C to 60°C.
It supports solid conductors from 0.2 mm² to 6 mm² and stranded conductors from 0.2 mm² to 4 mm².
It is designed for DIN rail mounting.
