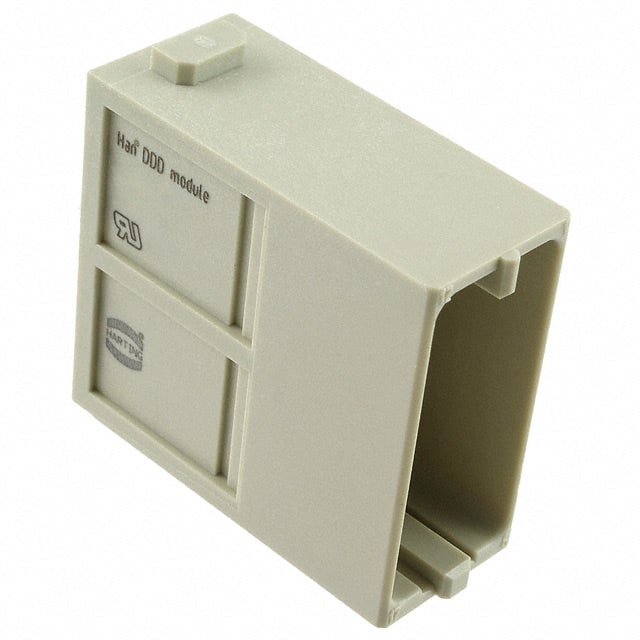

09140173001 Harting Han DDD male crimp module with 17 positions for 0.14–2.5 mm² conductors. Rated 10 A at 250 V with a V-0 rated polycarbonate insert.
Mfr Part #:

09140173001

Available from 2 distributors
Mfr Name: Harting
Harting
Harting Han DDD male crimp module with 17 positions for 0.14–2.5 mm² conductors. Rated 10 A at 250 V with a V-0 rated polycarbonate insert.
✓ Total Stock: 8 pcs

09140173001 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09140173001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Current Rating
Current Rating (Amps)
Gender
Insulation Resistance
Lead Style
Mating Cycles
Number of Positions
Operating Temperature
Prop 65
Rated Voltage
SVHC Present
Termination Style
Voltage Rating
View Similar Products (0)

09140173001 Description

Short technical summary and product information.

The Harting 09140173001 is a single-module Han DDD male crimp insert from the Han-Modular family, designed for heavy duty connector applications requiring high-density contact arrangements. The module accommodates up to 17 positions and accepts wire cross-sections from 0.14 to 2.5 mm² with a maximum wire outer diameter of 3.9 mm.



Electrical ratings include 10 A current rating, 250 V rated voltage per UL, and a rated impulse voltage of 2.5 kV at pollution degree 3. Insulation resistance exceeds 10¹⁰ Ω. The operating temperature range extends from -40 °C to +125 °C, and a mating cycle endurance of at least 10,000 cycles ensures long-term reliability.



The insert is made of polycarbonate (PC) in pebble grey (RAL 7032) with a UL 94 V-0 flammability rating. Contacts are ordered separately and are crimp-terminated. The module is RoHS, REACH, ELV, and California Proposition 65 compliant.

09140173001 Quick Information

Product Type: Heavy Duty Connector Module
Series: Han DDD
Canonical Name: Han DDD Module, Crimp, Male, 17 Positions
Subcategory: Modular Insert

09140173001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Annex XVII/XIV/SVHC not contained

09140173001 Features

  • 17-position male crimp Han DDD module.
  • Rated 10 A and 160 V (250 V UL).
  • Accepts 0.14 to 2.5 mm² conductors.
  • Polycarbonate insert with V-0 flammability.
  • Mating cycles ≥10,000 for long life.

09140173001 Applications

  • Heavy duty industrial connector systems.
  • Machine and control cabinet wiring.
  • Robotics and automation equipment.
  • Railway vehicle interior connections.

09140173001 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Harting 09140173001 module have?

The module has 17 positions.

What is the current rating of this module?

The current rating is 10 A.

What is the voltage rating for the Harting 09140173001?

The rated voltage is 160 V (250 V acc. to UL).

What termination method does this module use?

The module uses crimp termination.

What wire cross-section range is supported?

The module accepts conductors from 0.14 to 2.5 mm².

What is the operating temperature range?

The operating temperature range is -40 °C to 125 °C.

What flammability rating does the insert material have?

The polycarbonate insert is rated V-0 per UL 94.
