| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Country of Origin | |
| Current Rating (Amps) | |
| Failure Rate | |
| Gender | |
| Halogen Free | |
| Insulation Resistance | |
| Lead Style | |
| Mating Cycles | |
| Number of Contacts | |
| Number of Positions | |
| Operating Temperature | |
| Prop 65 | |
| Rated Current | |
| Rated Voltage | |
| SVHC Present | |
| Storage Temperature | |
| Termination Method | |
| Termination Style | |
| Voltage Rating |

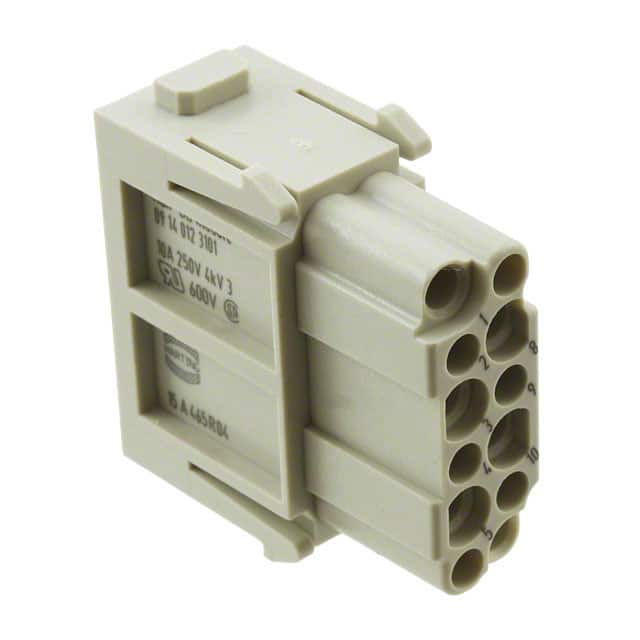

The Harting 09140123101 is a Han DD module from the Han-Modular series, designed for heavy duty connector applications. This module features 12 female contacts with crimp termination and is rated for a current of 10A and a voltage of 250V (UL rated 600V). The insulation resistance is greater than 10^10 ohms, with a rated impulse voltage of 4kV and pollution degree 3.
The module supports conductor cross-sections from 0.14 to 2.5 mm² and wire outer diameters up to 3.9 mm. It is designed for operating temperatures from -40°C to +125°C and can withstand at least 10,000 mating cycles. The insert is made of polycarbonate (PC) with a pebble grey color (RAL 7032) and meets UL 94 V-0 flammability requirements.
This module is intended for use in modular heavy duty connector systems and must be ordered with crimp contacts separately. It complies with RoHS, ELV, China RoHS, and REACH regulations. The module weighs approximately 0.003 g and is manufactured in Germany.
The module has 12 contacts.
10 A
250 V (UL rated 600 V)
-40°C to +125°C
Crimp termination
Yes, RoHS compliant
≥10,000 mating cycles
