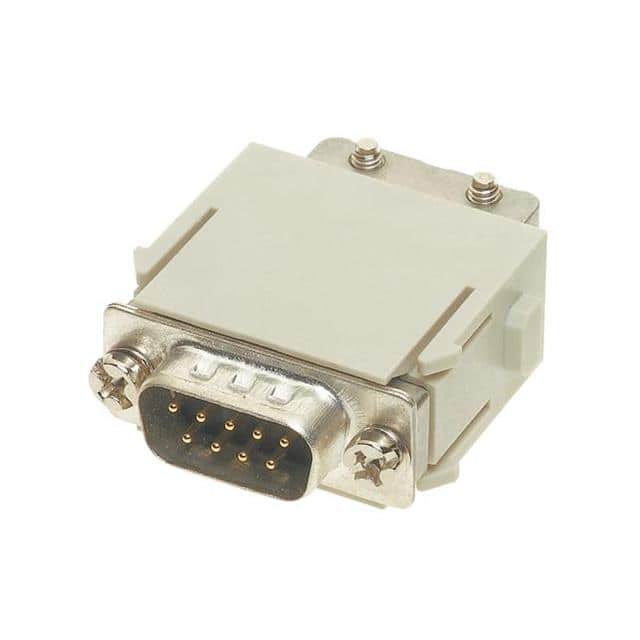

09140093001 Harting Han D-Sub male module with 9 crimp contacts. Rated for 5A current and 50V (IEC) / 30V (UL) voltage.
Mfr Part #:

09140093001

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han D-Sub male module with 9 crimp contacts. Rated for 5A current and 50V (IEC) / 30V (UL) voltage.
✓ Total Stock: 15 pcs

09140093001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09140093001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Type
Country of Origin
Current Rating (Amps)
Failure Rate
Gender
Insulation Resistance
Lead Style
Mating Cycles
Number of Contacts
Number of Positions
Operating Temperature
Operating Temperature Range
Rated Current
SVHC Present
Storage Temperature
Termination Method
Termination Style
Voltage Rating
Weight
View Similar Products (0)

09140093001 Description

Short technical summary and product information.

This Harting 09140093001 is a Han D-Sub module for the Han-Modular system. It is a male module with 9 contacts, designed for crimp termination. The module is supplied without contacts; suitable crimp contacts must be ordered separately.



Electrical characteristics include a rated current of 5 A, rated voltage of 50 V (IEC) and 30 V (UL), rated impulse voltage of 0.8 kV, pollution degree 3, and insulation resistance greater than 10^10 Ω. It accepts conductor cross-sections from 0.08 to 0.52 mm² and wire outer diameter up to 2.15 mm.



Mechanically, the module is a single-module size, with an insert made of polycarbonate and zinc die-cast, colored RAL 7032 (pebble grey). It meets UL 94 V-0 flammability requirements, operates over -40°C to +125°C, and supports at least 500 mating cycles. Net weight is 0.52 g, and country of origin is Germany.



Compliance: RoHS compliant with exemption (lead), REACH contains lead as SVHC, California Proposition 65 contains antimony trioxide, lead, nickel; MSL level 1. Note: All compliance data sourced from the product datasheet.

09140093001 Quick Information

Product Type: Han D-Sub Module
Series: Han-Modular
Canonical Name: Han D-Sub Module, Crimp Male, 9 Positions
Subcategory: Modules

09140093001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Contains SVHC (Lead)
Lead Free: Yes

09140093001 Features

  • 9-position male D-Sub module.
  • Rated for 5A current and 50V.
  • Crimp termination for flexible wiring.
  • Operates from -40°C to +125°C.
  • UL 94 V-0 flammability rated.

09140093001 Applications

  • Ideal for heavy-duty industrial connectors.
  • Used in modular connector systems.
  • Suitable for signal transmission up to 5A.
  • Applications requiring high mating cycles.

09140093001 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of contacts of the 09140093001?

9 male contacts.

What is the rated current of this module?

5 A.

What is the rated voltage for the 09140093001?

50 V (IEC) and 30 V (UL).

What is the operating temperature range?

-40°C to +125°C.

What materials are used for the insert?

Polycarbonate (PC) and zinc die-cast.

What is the flammability class?

UL 94 V-0.

Is the module RoHS compliant?

Yes, with exemption for lead.
